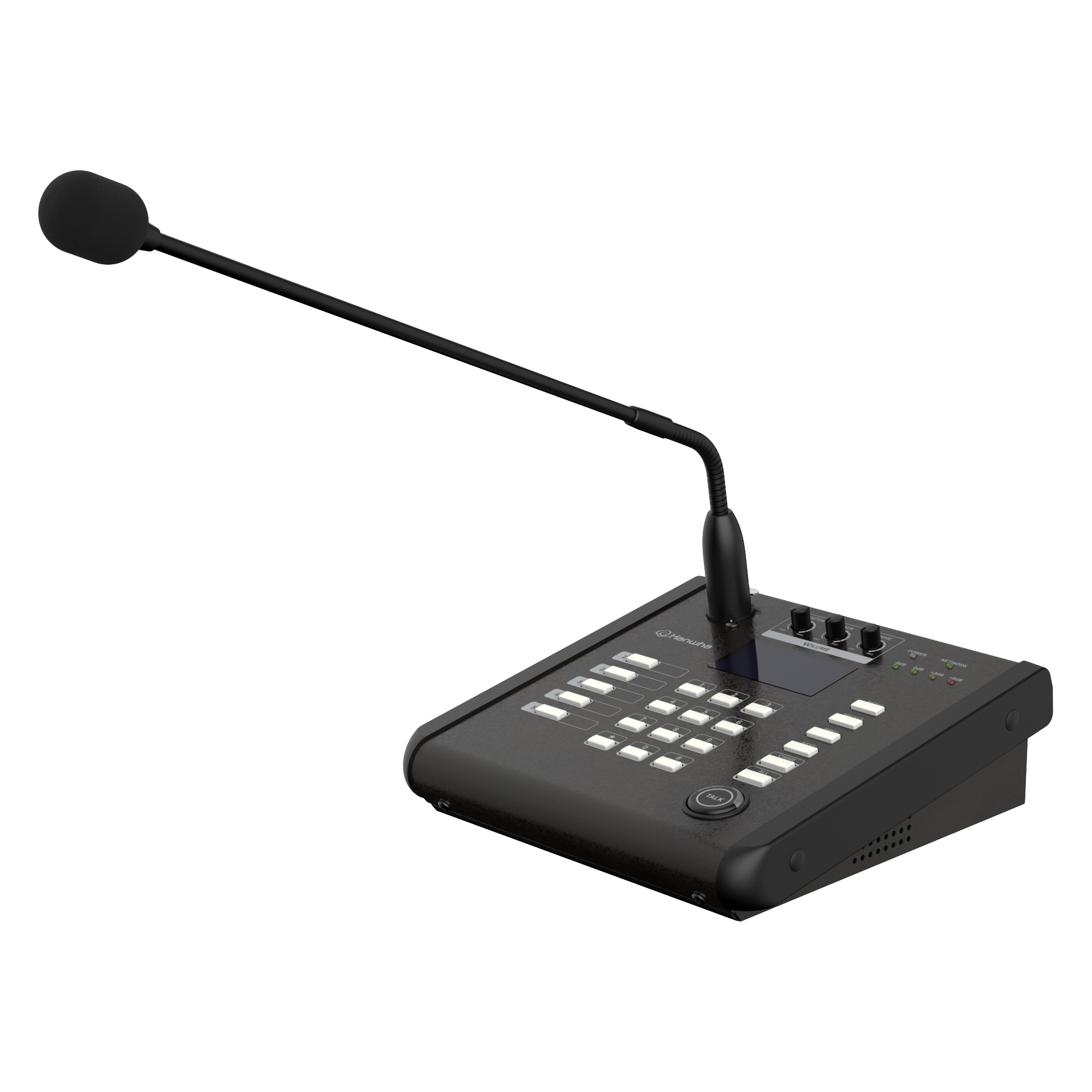

Hanwha SPA-M2000

SPA-M2000 SIP Microphone with PoE Power and VoIP Integration

The SPA-M2000 is a SIP microphone built for networked audio pickup and monitoring over an IP network. It connects via a 10/100 Base-T Ethernet port and is powered entirely through PoE (IEEE 802.3af Type 1 Class 3), drawing a maximum of 12W at DC24V, so no separate power supply is needed. Its embedded microphone has an input sensitivity of -50dBV ±3dB with a frequency response of 100Hz to 6kHz, and a built-in 1W/8Ω amplifier provides monitoring playback. The device communicates using the SIP protocol alongside IPv4, HTTP, HTTPS, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP and ICMP, and has been tested with SIP clients such as Grandstream, Yealink, Cisco and MicroSIP, and with PBX suppliers such as Asterisk. System integration is supported through the SUNAPI interface, while security is handled through password protection and Digest authentication with user access logging.

Key Features:

• PoE powered (IEEE 802.3af Type 1 Class 3, max. 12W, DC24V)
• Embedded microphone with 100Hz ~ 6kHz frequency response
• SIP protocol support with SUNAPI integration
• Tested with SIP clients Grandstream, Yealink, Cisco, MicroSIP and PBX supplier Asterisk
• Built-in 1W/8Ω monitoring amplifier
• Password protection and Digest authentication with user access log
