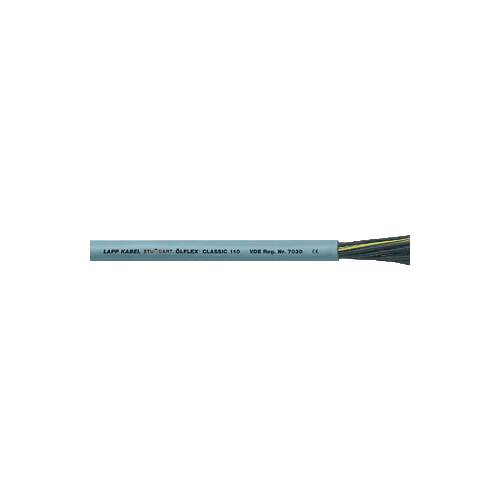

NetcamCenter Signal cable 7-core flexible 1 mm

Nominal conductor cross section 1 mm2

Composition of conductor Class 5 = flexible

Number of cores 7

Twisted Yes

Core insulation PVC

Vein coding Numbers

Yellow / green conductor Yes

Shielding groups None

Shielding collective None

Material outer sheath PVC

Gray coat gray

Halogen free according to EN 50267-2-2 No.

Fire delay According to IEC 60332-1-2

Low smoke acc. EN 50268-2 No.

Cold resistant acc. EN 60811-1-4 No.

Oil resistant acc. EN 60811-2-1 Yes

Outer diameter approximately 8 mm

Min / max installation temperature -40 to 80 gr.C.

Min / max operating temperature -40 to 80 gr.C.

Nominal voltage U0 300 V

Nominal voltage U 500 V

Colour: Grey

Hardly flammable Yes

Number of cores and conductor cross-section 7
