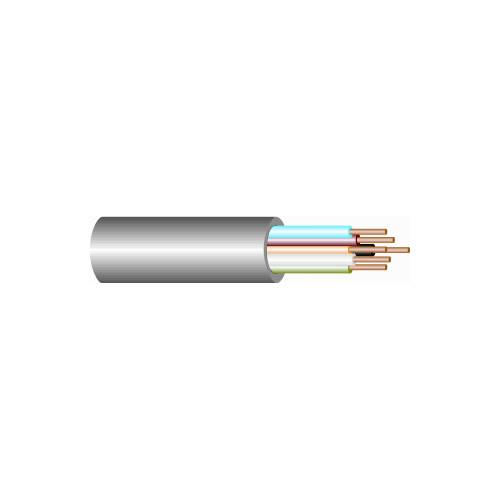

NetcamCenter Signal cable 2 core stiff 0.8 mm

Number of cores 2

Number of cores (excluding grounding conductor) 2

Composition conductor Class 1 = solid

Nominal conductor diameter 0.8 mm

Twisted -

Number of groups twisted 0

Combination Layers

Outer diameter approximately 4.1 mm

Core insulation PVC

Vein coding Color

Shielding groups None

Shielding collective None

Armament No.

Material outer sheath PVC

Gray coat gray

Chemical protection No.

Langwaterproof No.

Cross waterproof No.

Function retention No.

Hardly flammable Yes

Fire Retardance Vlgs. IEC 60332-3-24

Low smoke acc. EN 50268-2 No.

Halogen free according to EN 50267-2-2 No.

Min / max installation temperature -5 to 60 gr.C.

Min / max operating temperature -5 to 70°C

Can be used as outer cable No.

Number of cores and conductor diameter 2 x 0.8

AWG size not applicable!

DIN / VDE 0207 standard
