Hanwha SHP-1730FPW

Plenum-Rated In-Ceiling Flush Mount for Compatible Hanwha Vision Cameras

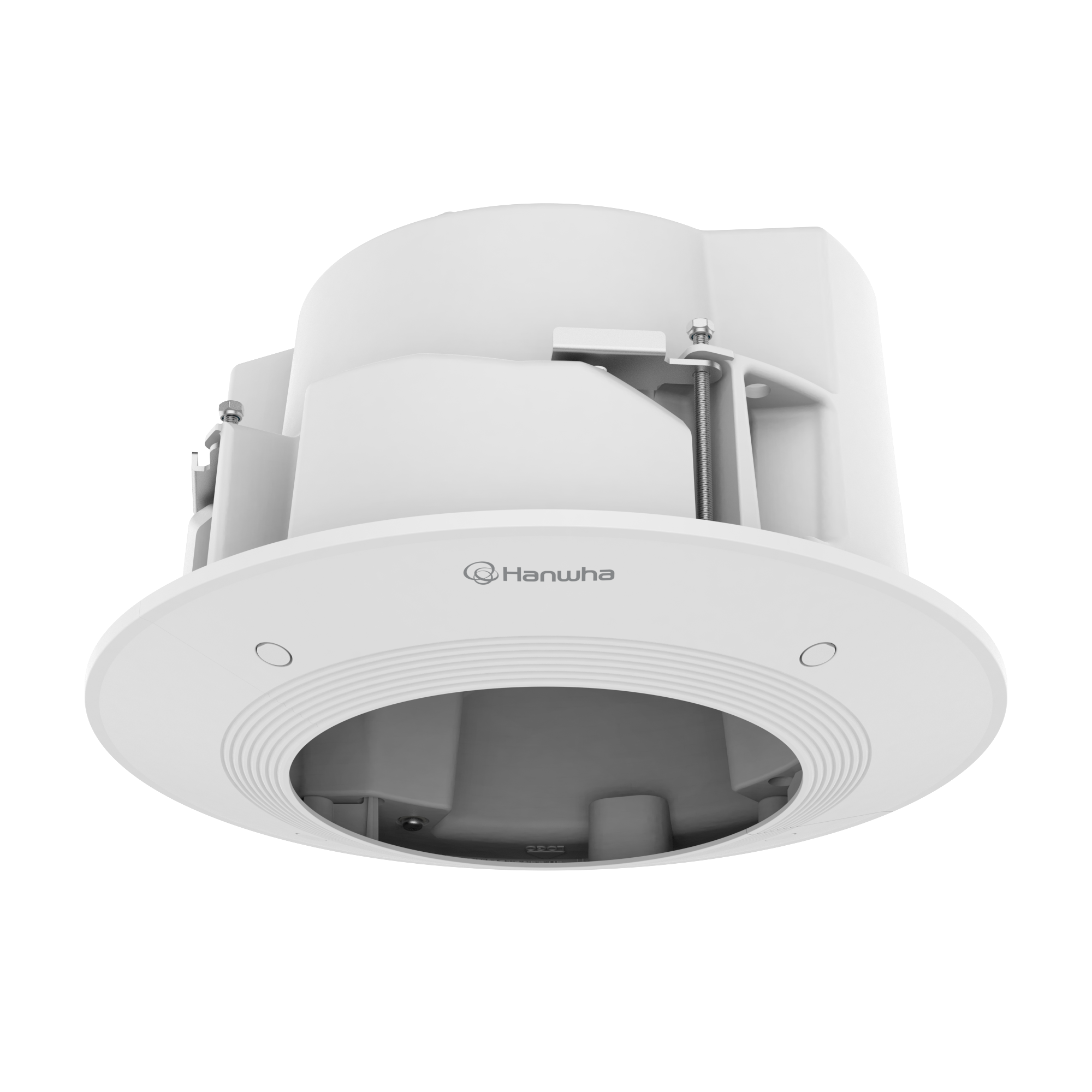

The SHP-1730FPW is a plenum-rated in-ceiling flush mount designed for XNP-C7310R and XNP-C9310R cameras. Finished in white, it features an aluminum enclosure with a polycarbonate (PC) top cover and carries the RAL9003 color code. The mount measures ø311x188mm (ø12.24x7.40") and weighs 2.45kg (5.40lb), with a ceiling hole size of ø266mm (ø10.50") and support for ceiling tile thickness from 10 to 70mm (0.4-2.8"). It has a maximum load of 7kg (15.43lb), while the ceiling board itself can support up to 15kg (33.10lb) maximum load. Conduit hole options of 19.1mm (3/4")(M25) and 12.7mm (1/2")(M20) are provided, along with TR20 and T30 mount screw sizes.

Key Features:

• Plenum-rated in-ceiling flush mount
• Compatible with XNP-C7310R and XNP-C9310R (check Toolbox for further compatible models)
• Aluminum enclosure with polycarbonate (PC) top cover, white, RAL9003
• Max. load 7kg (15.43lb); ceiling board max. load 15kg (33.10lb)
• Supports ceiling tile thickness of 10-70mm (0.4-2.8")
• Conduit hole options: 19.1mm (3/4")(M25) and 12.7mm (1/2")(M20)
