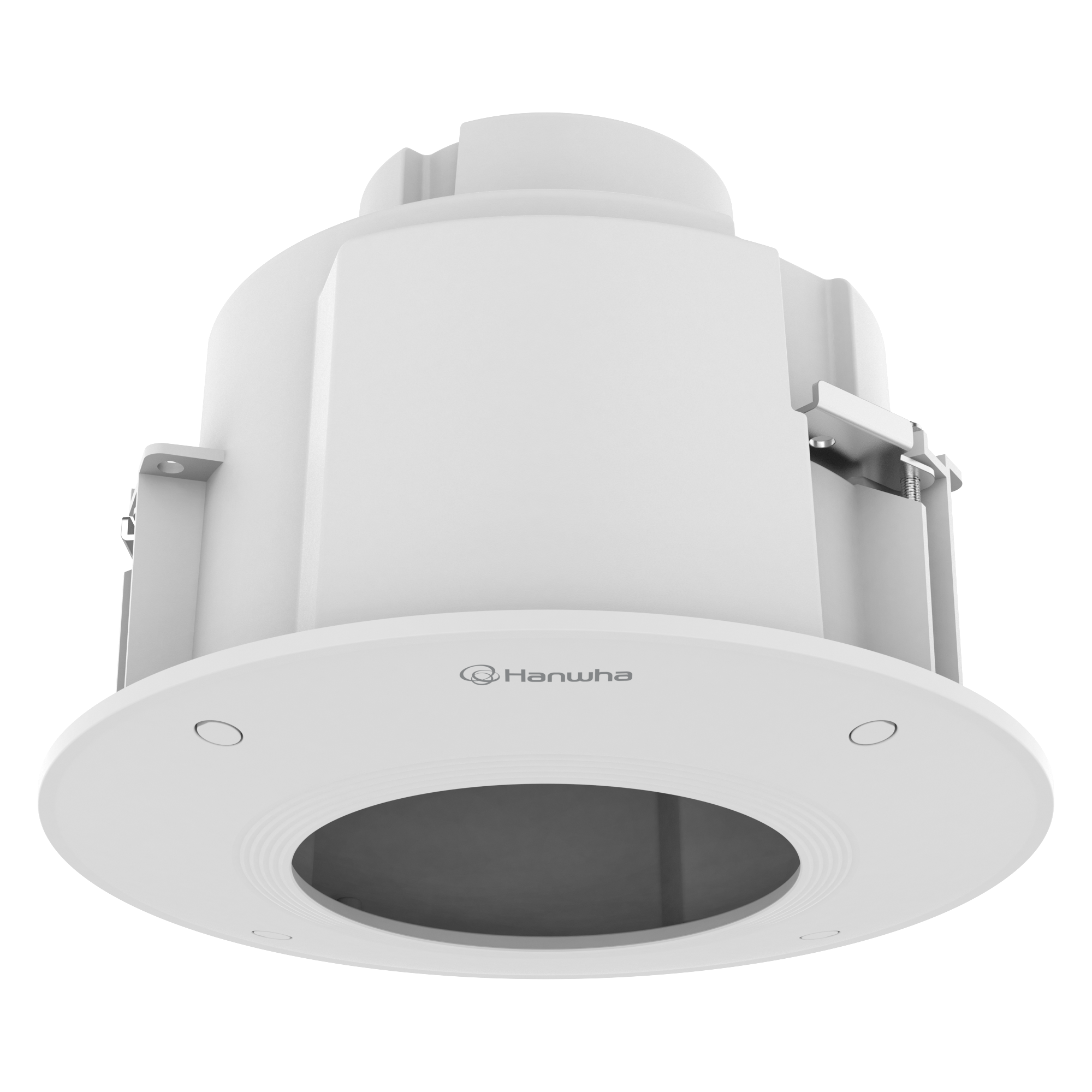

Hanwha SHP-1680FPW

White In-Ceiling Flush Mount for PTZ Cameras

The SHP-1680FPW is a white in-ceiling flush mount designed for plenum installations of PTZ cameras. Its enclosure is constructed from aluminum with a polycarbonate (PC) top cover, finished in white (RAL9003). The mount measures Ø268 x 209mm (Ø10.55 x 8.23") and weighs 1.3kg (2.87 lb), and fits ceiling tiles from 3 to 70mm thick. It includes conduit holes of 19.1mm (3/4") and 12.7mm (1/2") for cable routing. The SHP-1680FPW is compatible with HCP-6320/6320A, QNP-6230/6250/6320, and XNP-6320/6321/6120H PTZ cameras.

Key Features:

• Aluminum enclosure with polycarbonate (PC) top cover
• White finish (RAL9003)
• Compact dimensions: Ø268 x 209mm (Ø10.55 x 8.23"), 1.3kg (2.87 lb)
• Fits ceiling tiles from 3~70mm thick
• Conduit holes: 19.1mm (3/4") and 12.7mm (1/2")
• Compatible with HCP-6320/6320A, QNP-6230/6250/6320, XNP-6320/6321/6120H PTZ cameras
