Hanwha SHD-2000FPW

Plenum-Rated In-Ceiling Mount for PNM-C16013RVQ Cameras

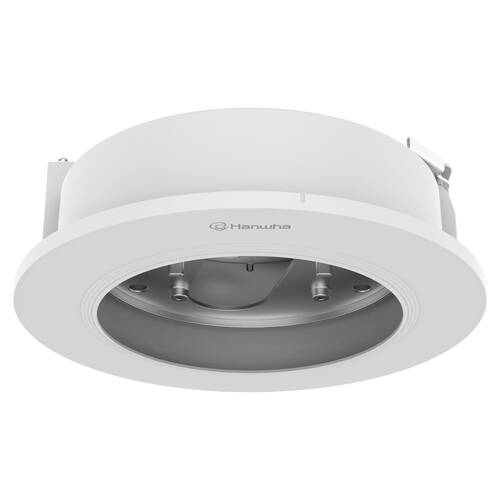

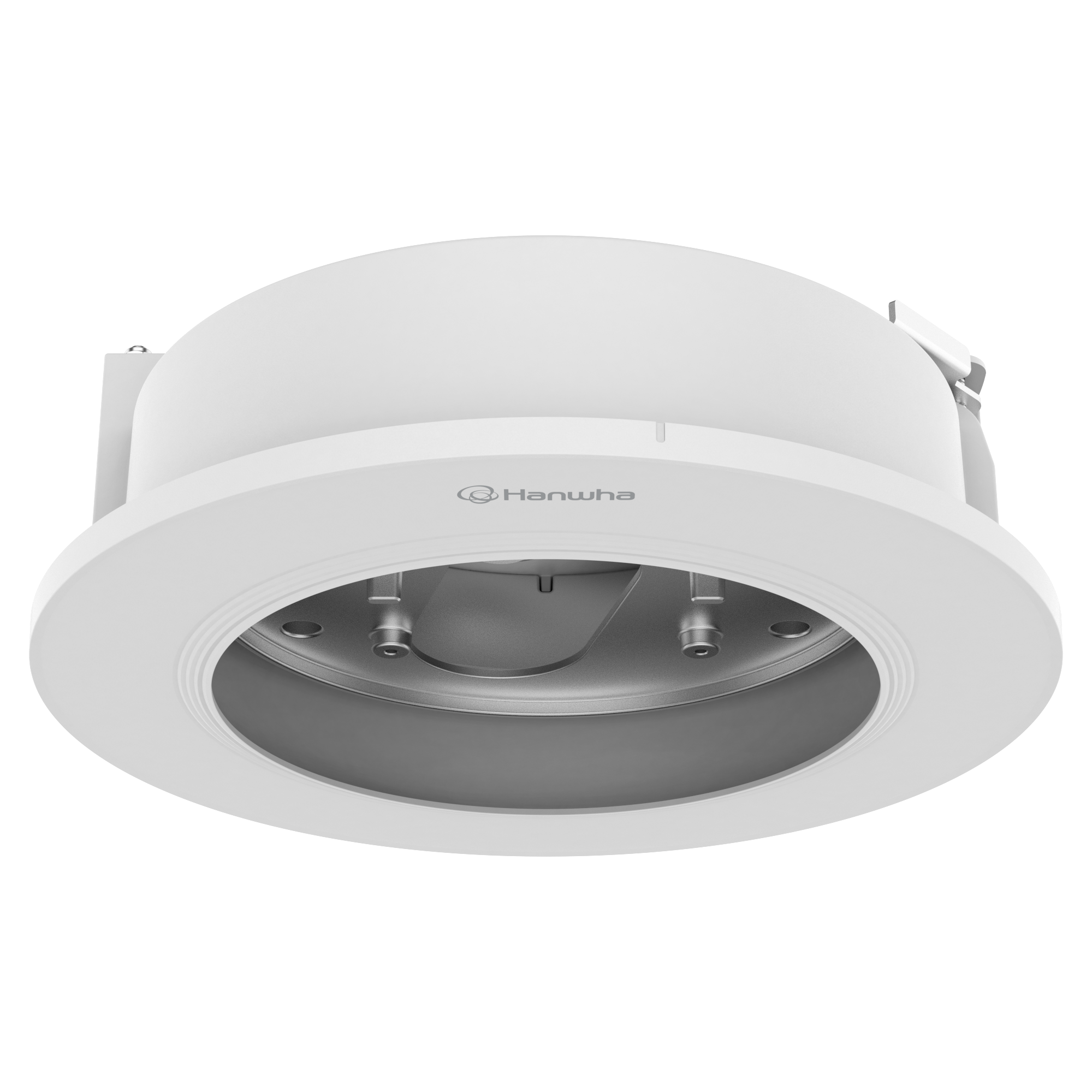

The SHD-2000FPW is a plenum-rated in-ceiling mount designed to hold compatible security cameras flush within a ceiling tile. Its enclosure is made of aluminum with a polycarbonate top cover, finished in white (RAL9003). The mount fits a ceiling hole of ø240mm and accommodates ceiling tiles from 10 to 70mm thick. It supports a maximum load of 3.5kg, with the ceiling board itself rated to carry up to 6.5kg. The mount is compatible with the PNM-C16013RVQ camera, with additional compatible models available via the manufacturer's website or Toolbox.

Key Features:

• Plenum-rated in-ceiling mount
• Aluminum enclosure with polycarbonate top cover
• White finish (RAL9003)
• Ceiling hole size ø240mm, fits tile thickness 10~70mm
• Max. load 3.5kg (ceiling board max. load 6.5kg)
• Conduit holes: 19.1mm (3/4") M25 and 12.7mm (1/2") M20
