Hanwha SHD-1600FW
Hanwha
Article code SHD-1600FW
{{ fullProductName }}
Description Hanwha SHD-1600FW

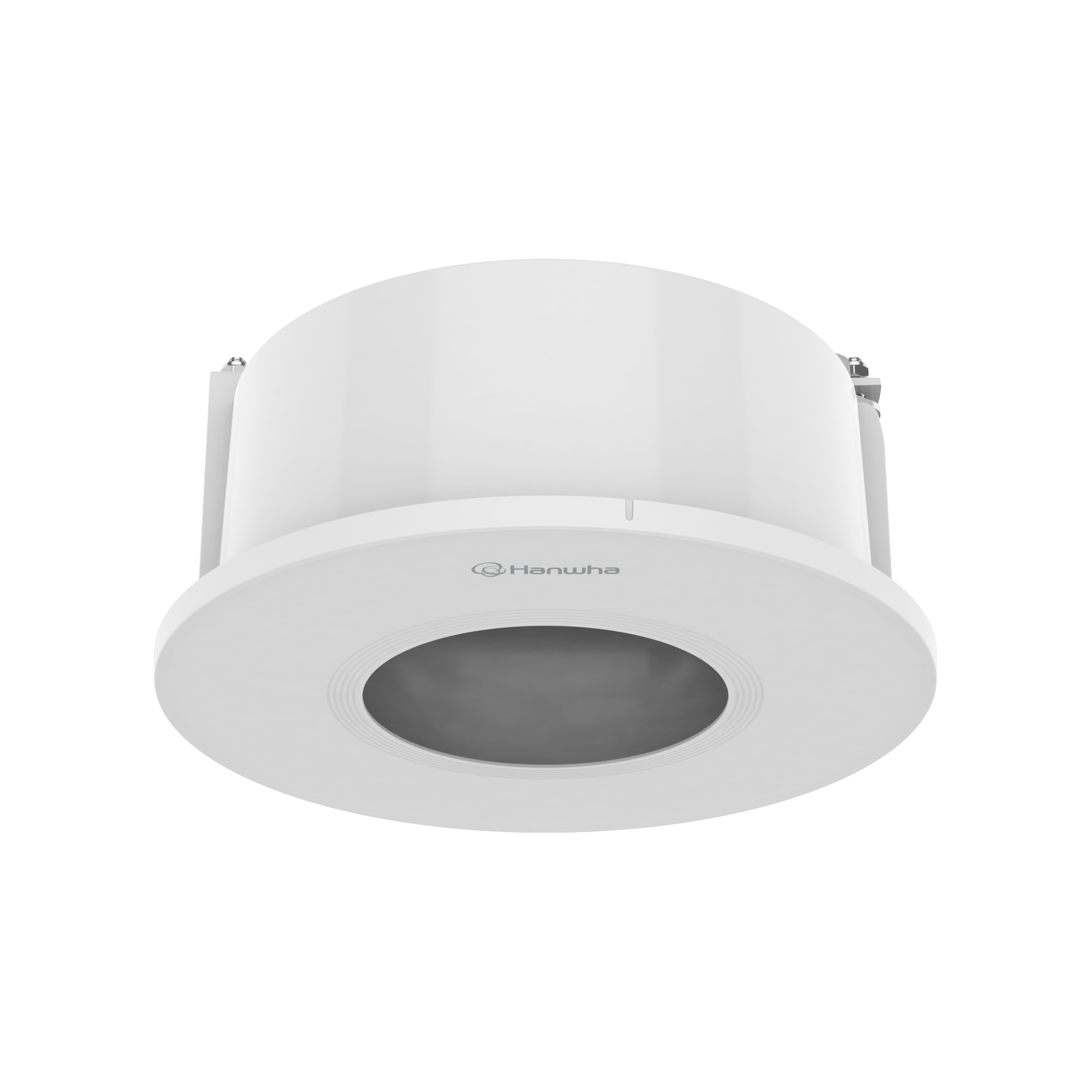

SHD-1600FW In-ceiling Mount for XND-C Series Cameras
The SHD-1600FW is an in-ceiling mount designed for discreet, flush installation of compatible dome cameras. Constructed from aluminum with a white finish, it measures Ø232.0x104.2mm (Ø9.13x4.10") and weighs 560g (1.23 lb). The mount uses a TR20 screw size and is finished in RAL9003. It is compatible with the XND-C6083RV, XND-C7083RV, XND-C8083RV, and XND-C9083RV camera models.
Key Features:
- Aluminum construction
- White finish (RAL9003)
- Dimensions: Ø232.0x104.2mm (Ø9.13x4.10")
- Weight: 560g (1.23 lb)
- TR20 mount screw size
- Compatible with XND-C6083RV/C7083RV/C8083RV/C9083RV
Downloads
| Datasheet | Download |
Compatible products
More products Less productsSpecifications
Product
| Model number | SHD-1600FW |
| GTIN code | 8801089217004 |
| Brand | Hanwha |
| Category |
Other Products
Mounts
|
| HS Code |
852990
|
| Country of origin |
Vietnam
|
| Weight |
560 grams
|
| Size (lxwxh) |
263
x 263 x 209 millimeters
|
|
Mounting Brackets
|
Drop Ceiling Mount
|
| Date published | 4/3/2025 |
