SHD-1372FPW
Article code SHD-1372FPW
{{ fullProductName }}
In-ceiling housing, aluminum white, ø352x107.4mm, tile 10-70mm, max load 5Kg
Description SHD-1372FPW

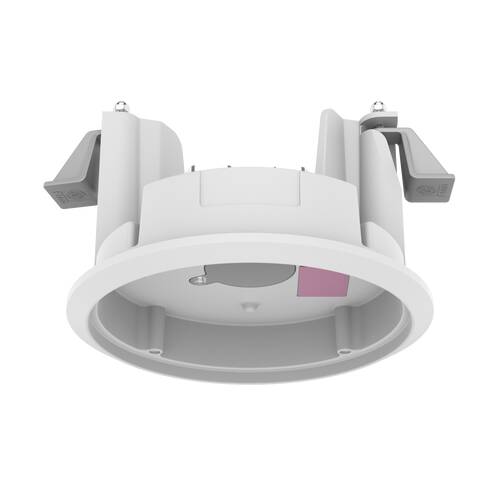

SHD-1372FPW Plenum In-ceiling Housing
The SHD-1372FPW is an in-ceiling housing designed for plenum installations, compatible with the PND-A7082RV, PND-A9082RV, PND-A6081R, PND-A9081R, XND-6083RV, XND-8083RV, XND-8093RV and XND-9083RV cameras. It is made of aluminum with a white finish (RAL9003) and measures ø352x107.4mm, weighing 2450g. The housing accommodates ceiling tiles with a thickness of 10 to 70mm and features conduit holes of 19.1mm (3/4", M25) and 12.7mm (1/2", M20). It supports a maximum load of 5Kg, with a maximum ceiling board load of 11.6kg, and uses a TR20 mount screw.
Key Features:
- Plenum in-ceiling housing
- Aluminum, white (RAL9003)
- Fits ceiling tile thickness 10~70mm
- Conduit holes: 19.1mm (M25) / 12.7mm (M20)
- Max. load 5Kg, max. ceiling board load 11.6kg
- TR20 mount screw
Specifications
Product
| Model number | SHD-1372FPW |
| GTIN code | 8801089233578 |
| Category |
Other Products
Housing & Masts
|
| HS Code |
852990
|
| Country of origin |
Vietnam
|
| Weight |
2450 grams
|
| Size (lxwxh) |
263
x 263 x 209 millimeters
|
|
Various
|
New
|
| Date published | 10/26/2026 |
