Hanwha SHD-1201FPW

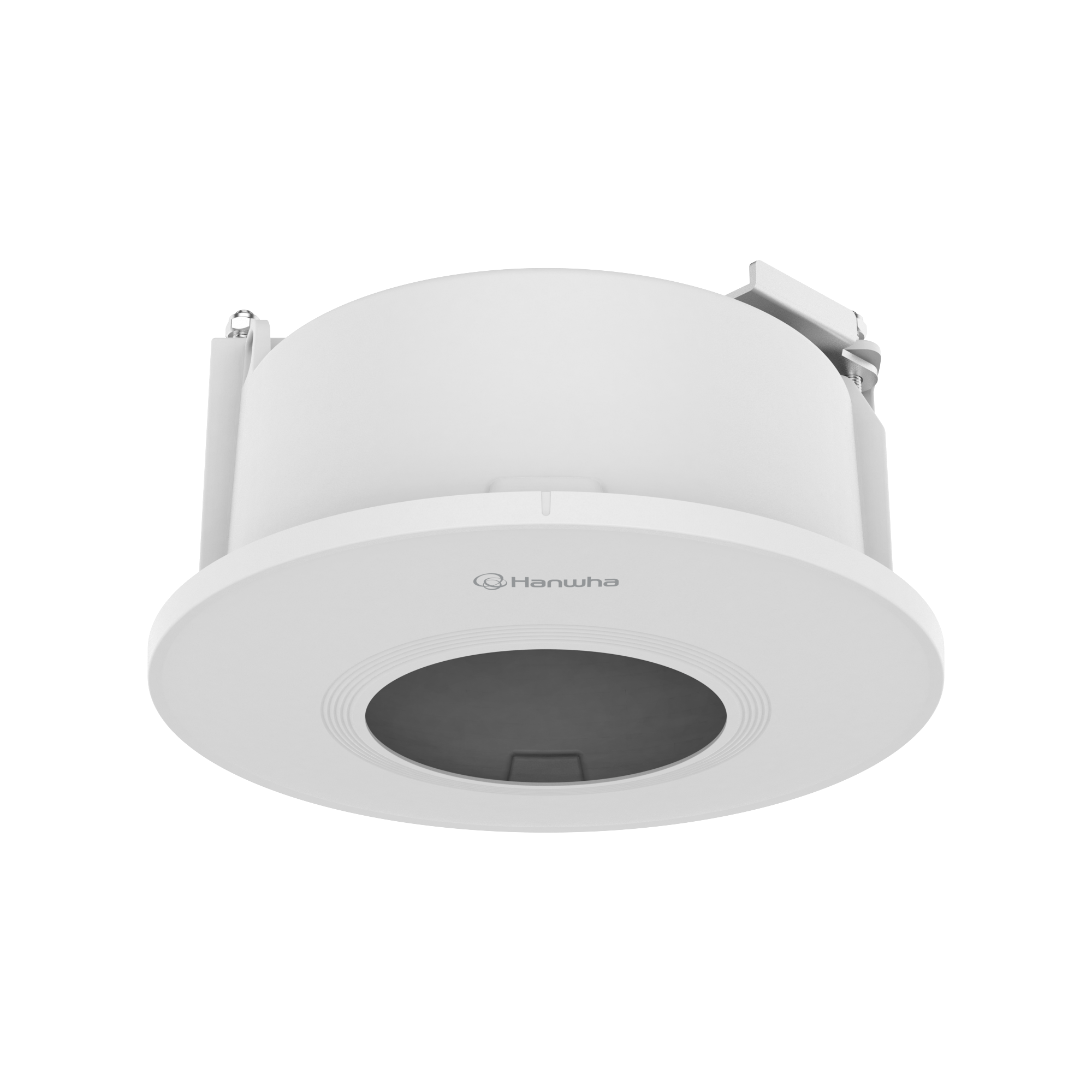

SHD-1201FPW In-ceiling Mount for QNV-C8013R/C8023R Cameras

The SHD-1201FPW is an in-ceiling mount designed for plenum installations, compatible with the QNV-C8013R and QNV-C8023R camera models. Built from aluminum with a white finish, it has a product diameter of ø180mm and a height of 100.7mm, weighing 676.4g. The mount fits ceiling tiles with a thickness of 10~70mm and requires a ceiling hole of ø160mm. It supports a maximum load of 2kg, provided the ceiling board itself can bear up to 3kg. Conduit holes of 12.7mm (M20) and 19.1mm (M25) are included for cable routing.

Key Features:

• White aluminum construction
• Compact ø180x100.7mm design, 676.4g
• Max. load 2kg (ceiling board max. 3kg)
• Fits tile thickness 10~70mm, ø160mm ceiling hole
• Conduit holes: 12.7mm (M20) / 19.1mm (M25)
• Compatible with QNV-C8013R/C8023R
