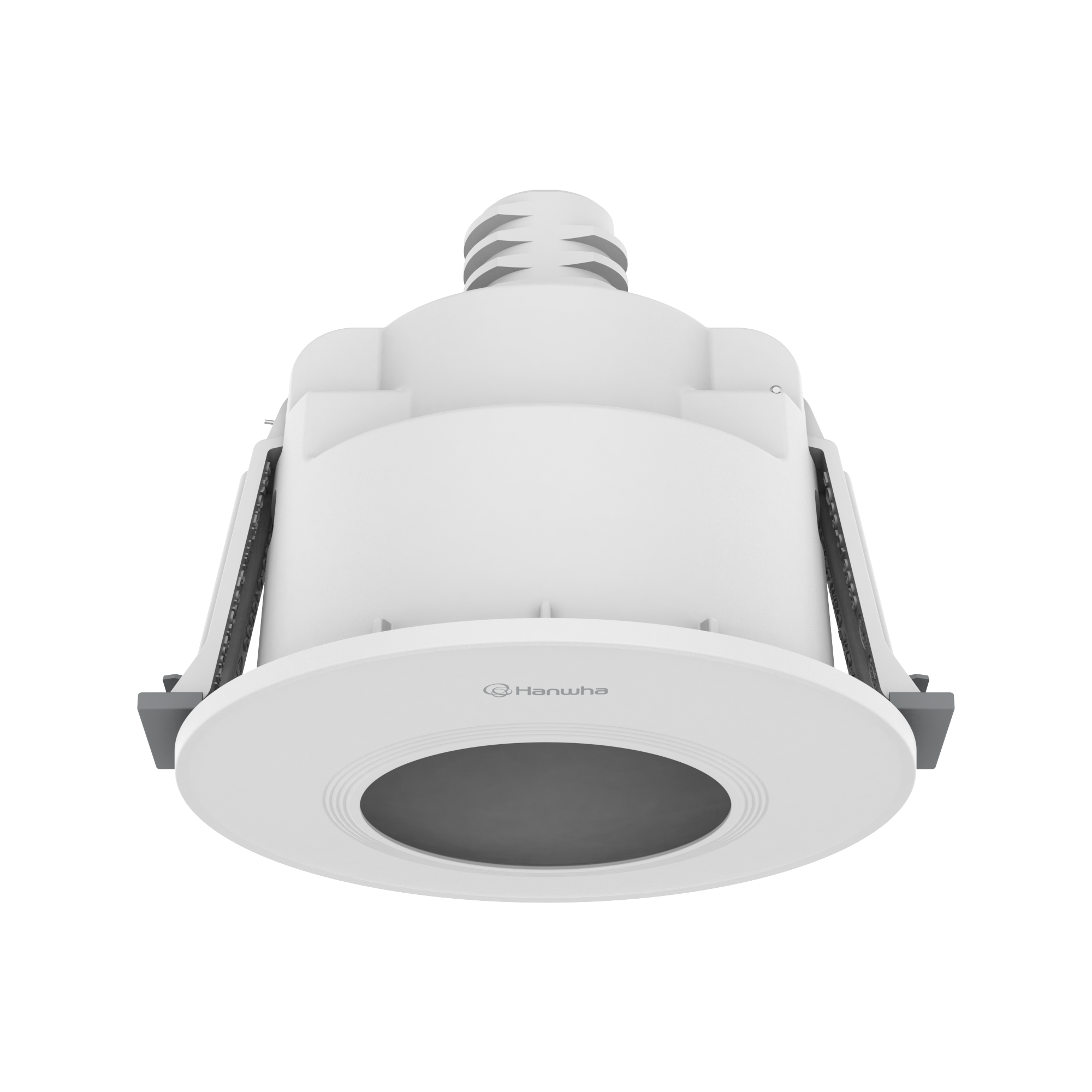

Hanwha SHD-1200FW

Lite In-ceiling Flush Mount for QNV-C8013R/C8023R Cameras

The SHD-1200FW is a lite in-ceiling flush mount designed for the QNV-C8013R and QNV-C8023R camera models. Made from white polycarbonate (PC) material with RAL9003 color code, it is built for a clean, unobtrusive ceiling installation. The mount requires a ceiling hole of ø140mm (ø5.51") and fits ceiling tiles with a thickness of 10~60mm (0.4~2.4"). It measures 175x162x147mm (6.89x6.38x5.79") and weighs 275g (0.61lb). The mount supports a maximum load of 0.6kg (1.32lb), while the ceiling board itself is rated to support up to 3kg (6.61lb).

Key Features:

• White polycarbonate (PC) construction, RAL9003
• Lite, flush in-ceiling mount design
• Ceiling hole size: ø140mm (ø5.51")
• Fits ceiling tile thickness 10~60mm (0.4~2.4")
• Max. load 0.6kg (1.32lb); ceiling board max load 3kg (6.61lb)
• Compatible with QNV-C8013R/C8023R
