Hanwha SHD-1101FW

Lite In-ceiling Flush Mount for QND-C8013R/C8023R

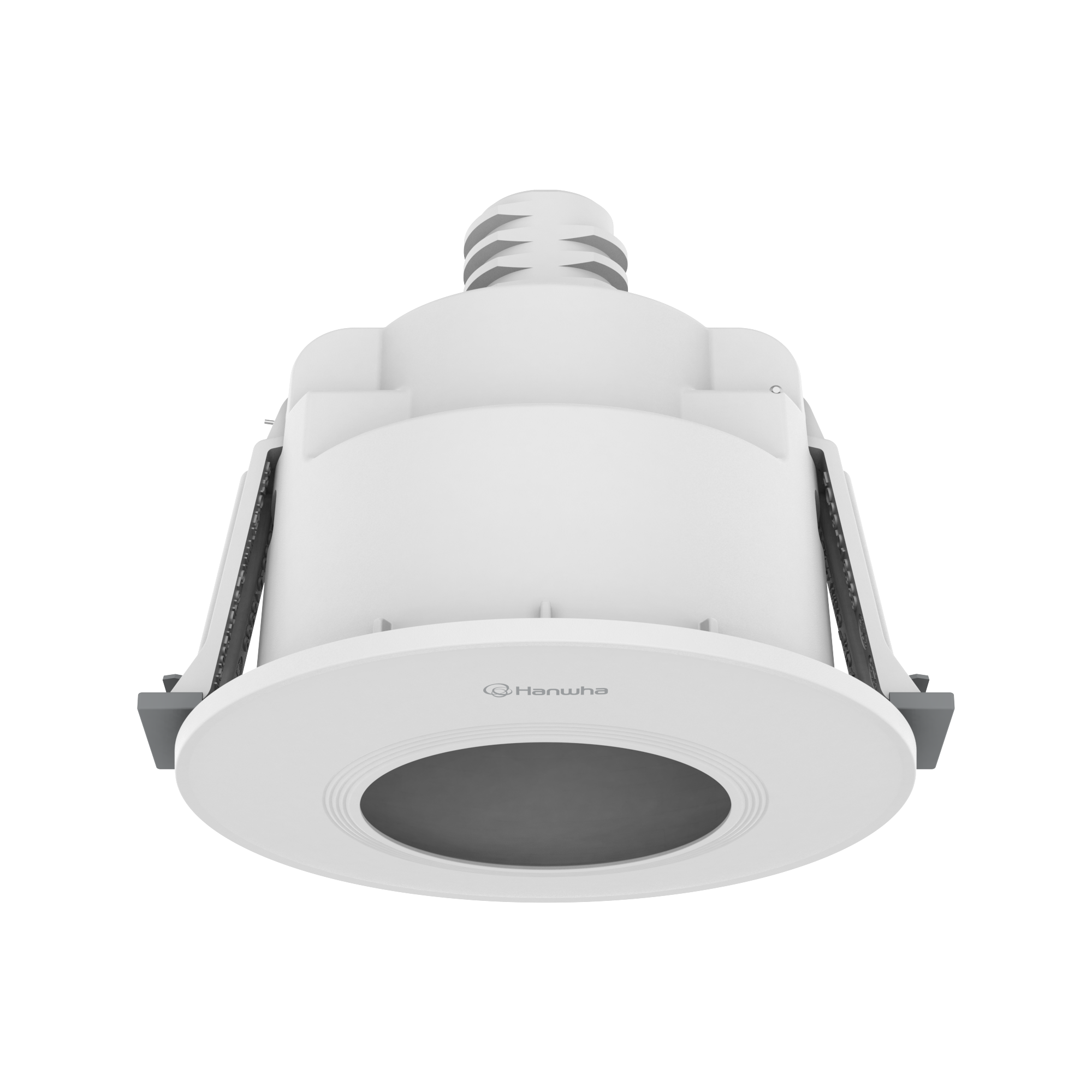

The SHD-1101FW is a lite in-ceiling flush mount designed for recessed installation of compatible camera models. Made from durable white polycarbonate (RAL9003), it sits flush with the ceiling surface for a discreet look. The mount fits ceiling tiles with a thickness of 10~60mm (0.4~2.4") through a ø140mm (ø5.51") ceiling hole. It measures 175x162x147mm (6.89x6.38x5.79") and weighs 310g (0.68lb). It supports a maximum load of 0.6kg (1.32lb), with the ceiling board itself rated for a maximum load of 3kg (6.61lb). The SHD-1101FW is compatible with the QND-C8013R and QND-C8023R.

Key Features:

• Lite in-ceiling flush mount design
• White PC (Polycarbonate) material, RAL9003
• Ceiling hole size: ø140mm (ø5.51")
• Tile thickness support: 10~60mm (0.4~2.4")
• Max. load: 0.6kg (1.32lb); ceiling board max. load 3kg (6.61lb)
• Compatible with QND-C8013R/QND-C8023R
