Hanwha SHD-1100FPW

Plenum-rated in-ceiling mount for QND-C8013R and QND-C8023R cameras

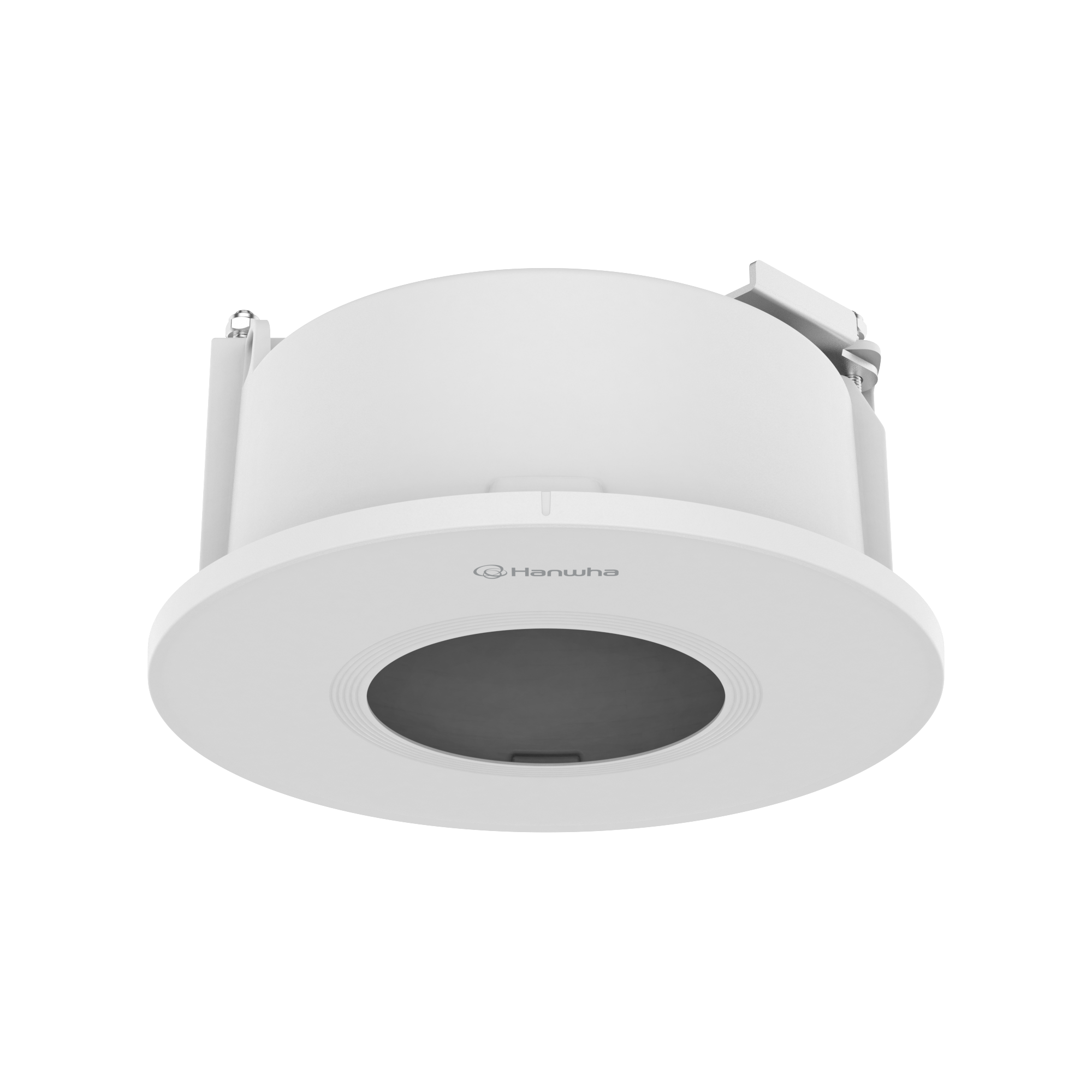

The SHD-1100FPW is a plenum in-ceiling mount designed for flush installation of the QND-C8013R and QND-C8023R cameras. Made of white aluminum with a RAL9003 finish, it has product dimensions of ø180x100.7mm and weighs 676.4g. The mount requires a ceiling hole size of ø160mm and is suitable for ceiling tiles with a thickness of 10~70mm, secured using TR20 screws. It supports a maximum load of 1.5kg, with a maximum ceiling board load of 3kg. Conduit holes of 12.7mm (1/2", M20) or 19.1mm (3/4", M25) are available for cable routing.

Key Features:

• Plenum-rated in-ceiling mount
• White aluminum construction, RAL9003
• Compact design: ø180x100.7mm, 676.4g
• Fits ceiling tiles 10~70mm thick, ø160mm ceiling hole
• Max. load 1.5kg (max. ceiling board load 3kg)
• Compatible with QND-C8013R and QND-C8023R
