Hanwha SHB-4300H1
Hanwha
Article code SHB-4300H1
{{ fullProductName }}
Extreme Weatherproof Aluminum Fixed Camera Housing w/Mounting Bracket, Compatible with all box cameras, Built-in defroster/heater and fan, IP66, 24VAC, Ivory.
Description Hanwha SHB-4300H1

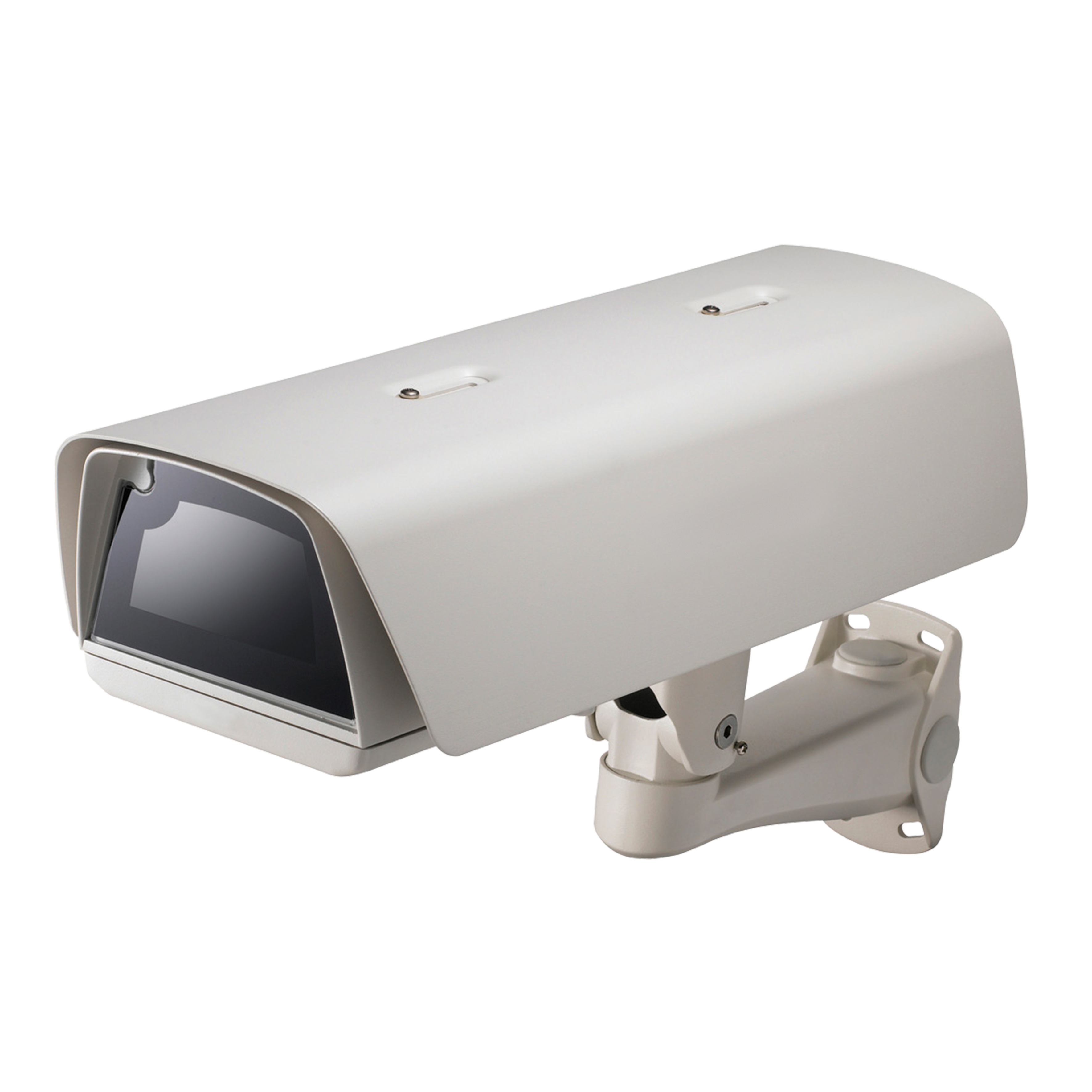

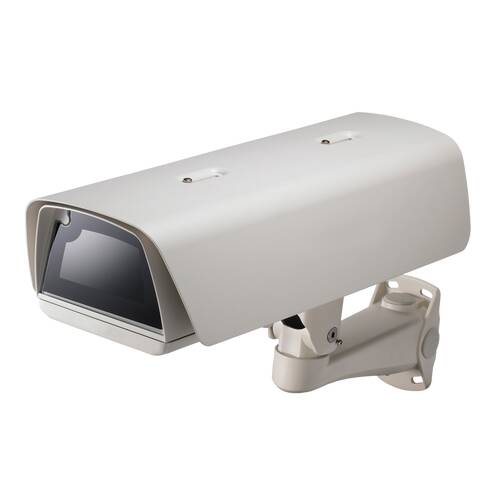

Aluminum IP66 Housing for Box Cameras with Heater, Blower and Defroster
The SHB-4300H1 is an aluminum fixed housing built for network and analog box cameras. It uses a side-open design with a nylon gland cable entry for straightforward installation and cable management. Rated IP66 for ingress protection, the housing is designed to operate across a temperature range of -50°C to +50°C (-58°F to +122°F) and 0~90% RH humidity. It includes a 20W heater, a 2W blower, and an always-on 8W defroster to support operation in these conditions. The unit runs on 24V AC with 55W power consumption, is finished in Ivory, and carries CE (Class A) certification.
Key Features:
- Aluminum housing with IP66 ingress protection
- Side-open design with nylon gland cable entry
- Operating temperature: -50°C to +50°C (-58°F to +122°F)
- 20W heater, 2W blower, and always-on 8W defroster
- 24V AC input, 55W power consumption
- CE (Class A) certified; for network/analog box cameras
Compatible products
Box
Specifications
Product
| Model number | SHB-4300H1 |
| GTIN code | 8801089167316 |
| Brand | Hanwha |
| Category |
Other Products
Housing & Masts
|
| HS Code |
852990
|
| Country of origin |
China
|
| Weight |
3700 grams
|
| Size (lxwxh) |
505
x 240 x 250 millimeters
|
|
Housings / Poles
|
Camera Housings
|
| Date published | 4/26/2023 |
