Hanwha SHB-4300H
Hanwha
Article code SHB-4300H
{{ fullProductName }}
End-of-life: Product might no longer be available
Extreme Weatherproof Aluminum Fixed Camera Housing w/Mounting Bracket, Compatible with all box cameras, Built-in heater and fan, IP66, 24VAC, Ivory.
Would you like personal advice on alternatives?
Description Hanwha SHB-4300H
Aluminum IP66 Fixed Housing with Heater and Blower for Box Cameras

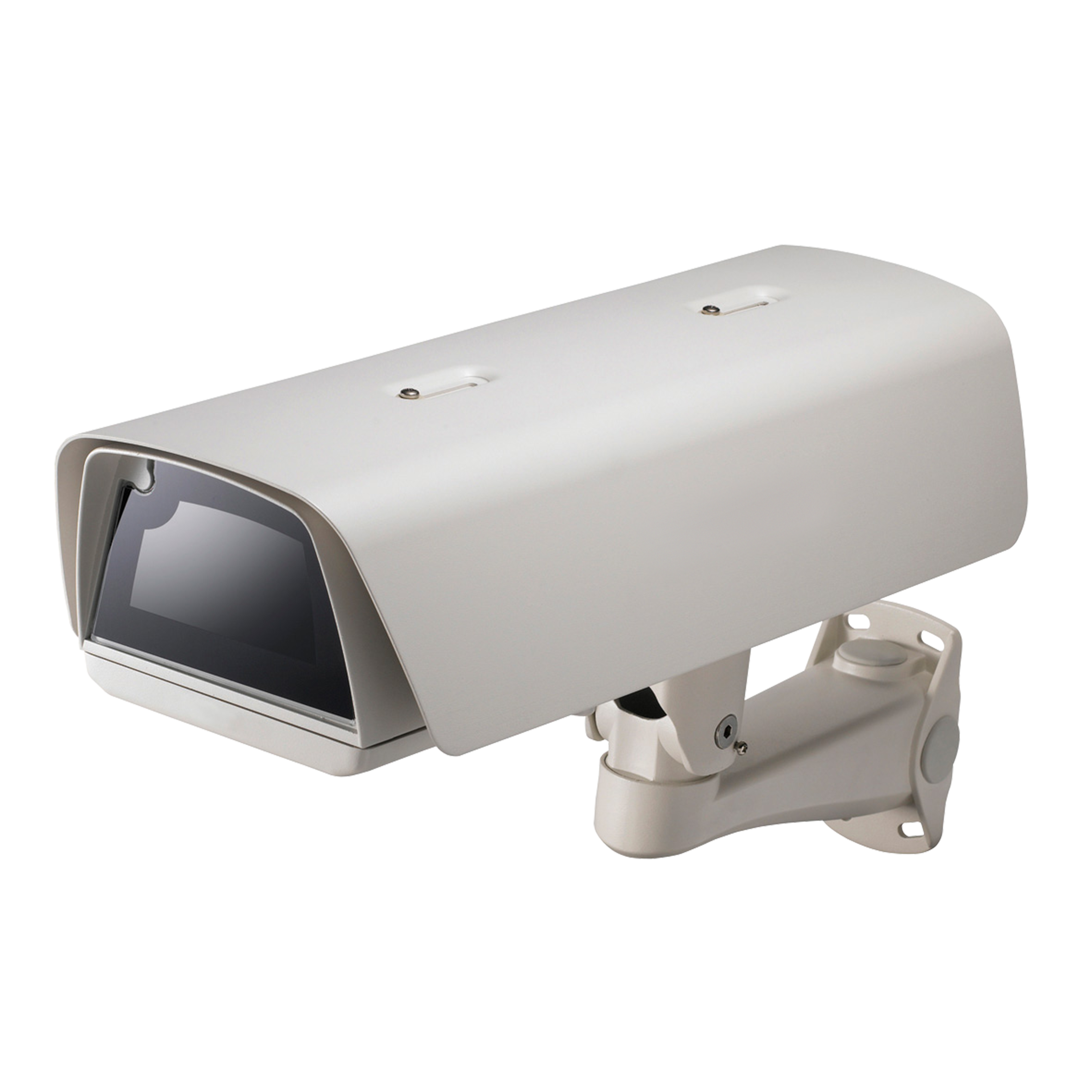

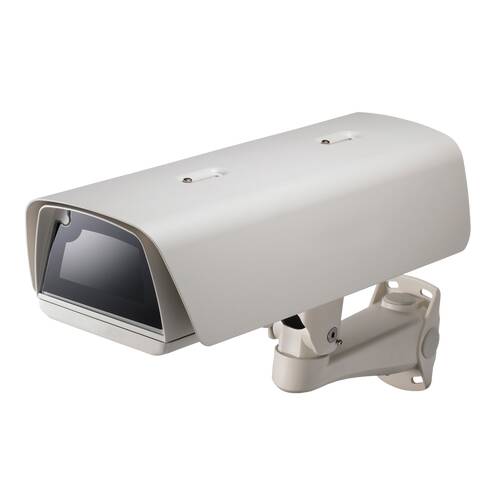

The SHB-4300H is an aluminum fixed housing designed to protect network and analog box cameras in demanding outdoor environments. It features a side-open design with a nylon gland cable entry and an IP66-rated enclosure for protection against dust and water ingress. A built-in 20W heater keeps the interior at 5°C ± 5°C, while a 2W blower activates between +45°C and +5°C to help regulate internal temperature. The housing supports an operating temperature range of -35°C to +50°C and 0 to 90% RH humidity, and runs on a 24V AC input with 25W power consumption. It is finished in Ivory and carries CE (Class A) certification.
Key Features:
- Aluminum construction with Ivory finish
- IP66-rated ingress protection
- Side open design with nylon gland cable entry
- Built-in 20W heater (5°C ± 5°C)
- 2W blower (+45°C ~ +5°C)
- Compatible with network and analog box cameras
Specifications
Product
| Model number | SHB-4300H |
| GTIN code | 8801089167279 |
| Brand | Hanwha |
| Category |
Other Products
Housing & Masts
|
| HS Code |
852990
|
| Country of origin |
China
|
| Weight |
3500 grams
|
| Size (lxwxh) |
243
x 505 x 265 millimeters
|
|
Housings / Poles
|
Camera Housings
|
| Date published | 4/26/2023 |
| EOL since | 10/9/2026 |
