Hanwha SBV-136BW

SBV-136BW Aluminum Back Box for QNV-8080R and QNV-6082R Dome Cameras

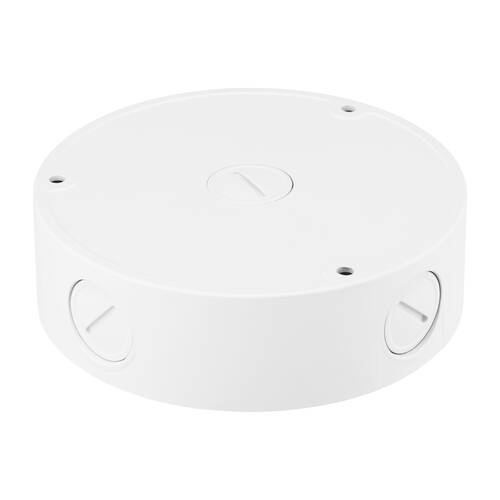

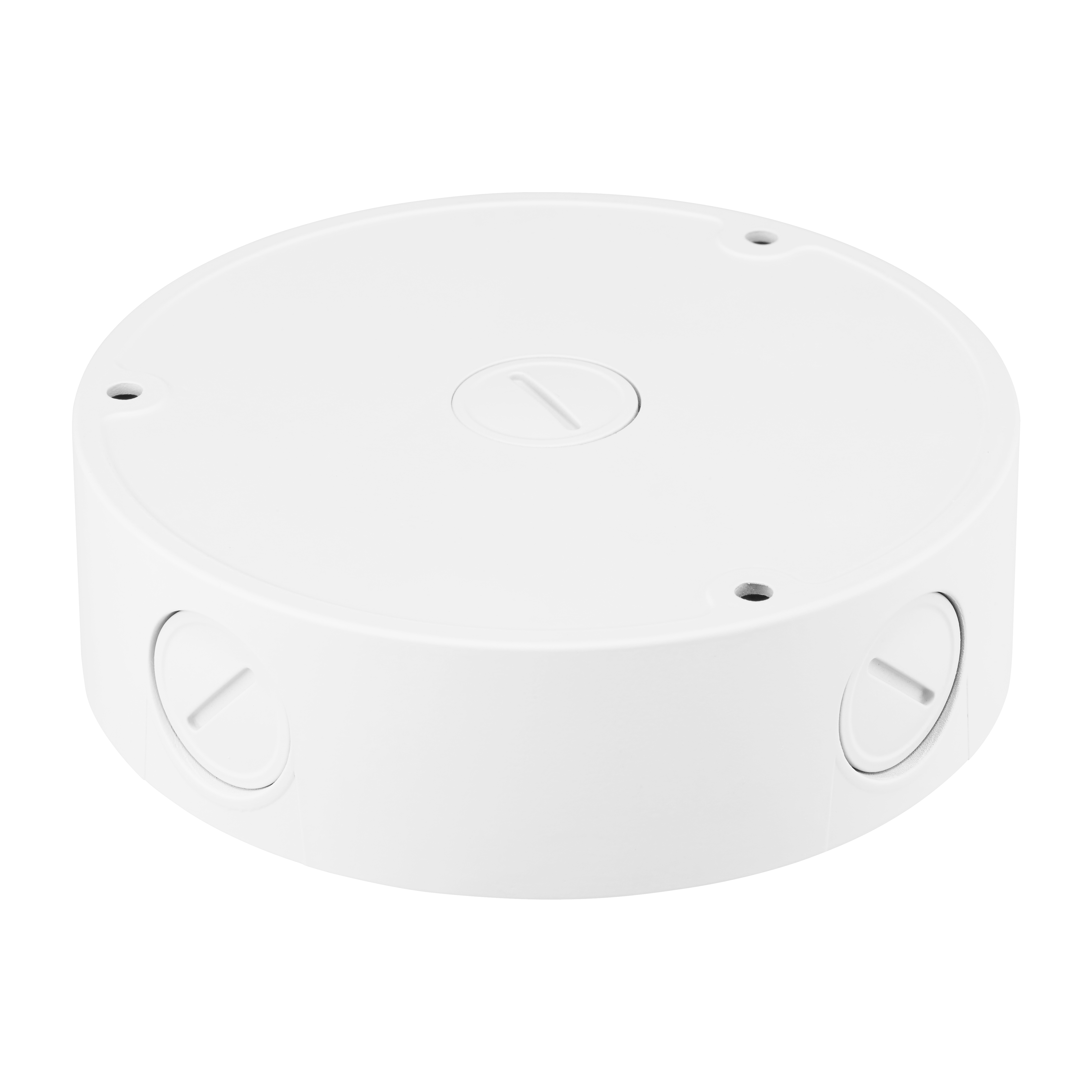

The SBV-136BW is an aluminum back box designed for mounting compatible Hanwha Vision dome cameras. It features knockout panels for cable routing and is finished in white (RAL9003) to match the supported camera housings. Measuring ø136x40mm and weighing 345g, it is built to withstand operating temperatures from -50°C to 60°C and humidity levels from 0 to 100%. The SBV-136BW is compatible with the QNV-8080R and QNV-6082R/6082R1 camera models.

Key Features:

• Aluminum construction
• White finish (RAL9003)
• Knockout panels for cable routing
• Compatible with QNV-8080R and QNV-6082R/6082R1
• Operating temperature -50°C to 60°C
• Dimensions ø136x40mm, weight 345g
