Hanwha SBP-250HMW
Hanwha
Article code SBP-250HMW
{{ fullProductName }}
Description Hanwha SBP-250HMW

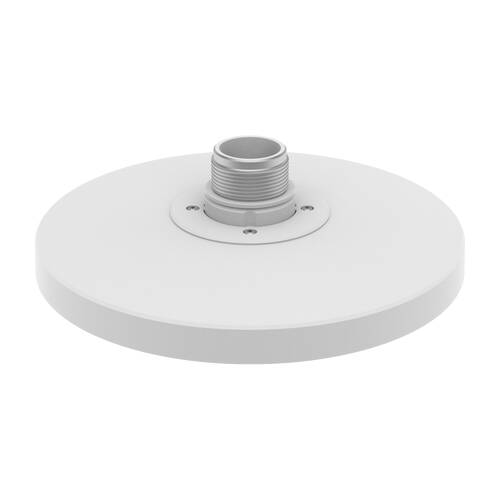

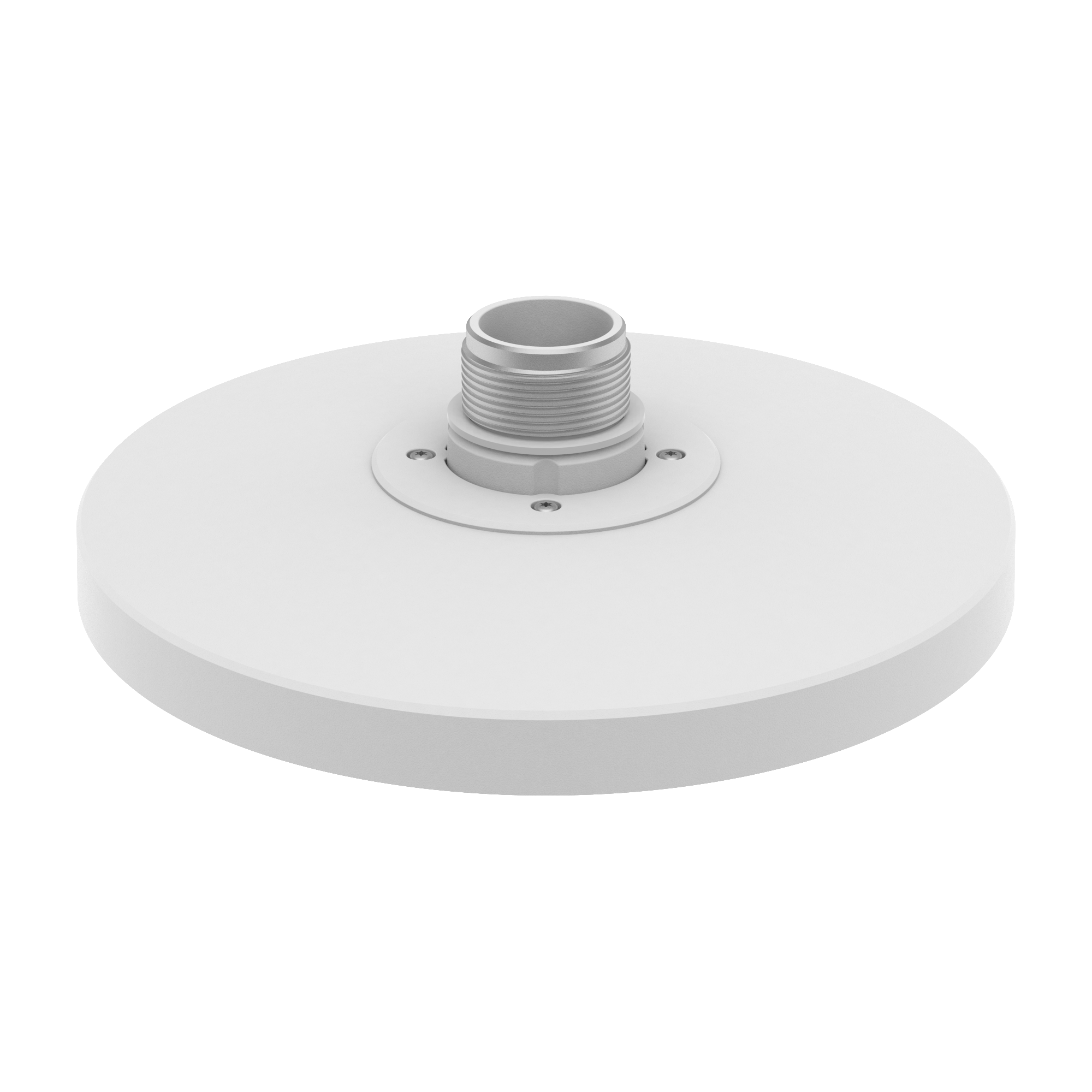

White Aluminum Hanging Adaptor for Hanwha Vision Cameras
The SBP-250HMW is a hanging adaptor used to mount compatible Hanwha Vision camera models for ceiling installation. It is made of aluminum with a white finish (RAL9003) and measures ø265x74.0mm (ø10.4x2.91"), weighing 450g (0.99lb). The adaptor uses a TR20 mount screw and supports a maximum load of 3.5kg. It is compatible with the PNM-8082VT, PNM-9084RQZ, PNM-9084QZ1, PNM-9002VQ, PNM-9022V, PNM-9031RV, PNM-C9022RV, PNM-C16083RVQ and PNM-C32083RVQ camera models. For further compatible models, Hanwha Vision recommends checking their website or Toolbox.
Key Features:
- Aluminum construction in white (RAL9003)
- Dimensions: ø265x74.0mm (ø10.4x2.91")
- Weight: 450g (0.99lb)
- TR20 mount screw size
- Max. load: 3.5kg
- Compatible with multiple PNM series cameras
Compatible products
Multidirectional
Panoramic
Specifications
Product
| Model number | SBP-250HMW |
| GTIN code | 8801089225474 |
| Brand | Hanwha |
| Category |
Other Products
Mounts
|
| HS Code |
830249
|
| Country of origin |
Vietnam
|
| Weight |
450 grams
|
| Size (lxwxh) |
336
x 336 x 122 millimeters
|
|
Mounting Brackets
|
Drop Ceiling Mount
|
| Date published | 9/27/2023 |
| Predecessor | Hanwha SBP-276HMW |
