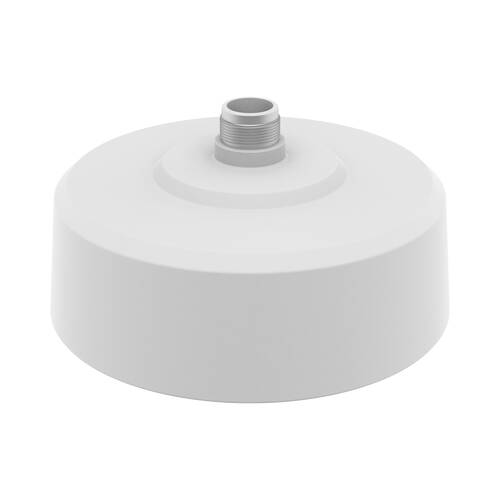

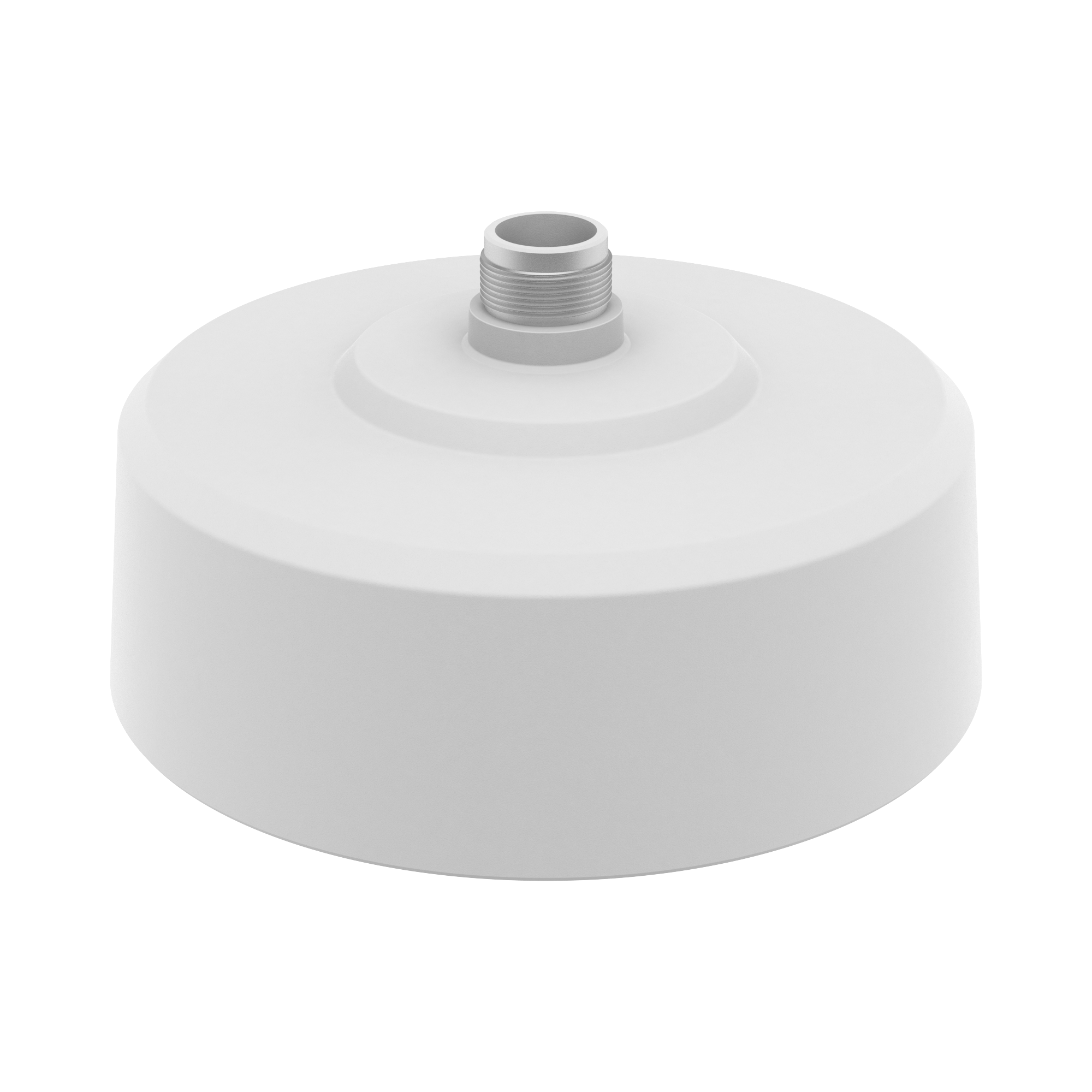

Hanwha SBP-156HMWR

Aluminum Hanging Mount Housing for Fiber Network and PoE Injector Setups

The SBP-156HMWR is an aluminum hanging adaptor designed for fiber cable network and PoE injector installations. It is built for use with the SNI-1MC or SNI-1MC-PS, though the SNI bracket itself is not included. Finished in white (RAL9003), the housing measures ø325x169mm (ø12.79x6.30") and weighs 4.5kg (9.92lb), with a maximum load capacity of 8kg. It carries IP66 and IK10 certification, providing protection against dust, water ingress and mechanical impact. The SBP-156HMWR is compatible with the XNP-6400/8250/9250, XNP-C6403/C8253/C9253/C7310R/C9310R camera series.

Key Features:

• Aluminum construction in white (RAL9003) finish
• Developed for fiber cable network and PoE injector setups
• IP66 and IK10 rated for dust, water and impact protection
• Max. load 8kg, Mount screw size TR20
• Compatible with XNP-6400/8250/9250, XNP-C6403/C8253/C9253/C7310R/C9310R
• Compact dimensions ø325x169mm, weight 4.5kg
