Pentax PTC70220HK

Pentax quality lenses are suitable for every CCTV, surveillance and machine vision application.

With Pentax Day & Night lenses, the chromatic aberration has been corrected from visible light to almost Infrared (950nm). The shift of the point of focus (focus shift) is therefore unrecognizable. The optical flicker and contrast reduction caused by infrared rays in sunlight is also eliminated. This means that a single lens is sufficient for both black and white and color cameras, but also for the special Day / Night cameras.

As the first component to perceive and transmit images, the lens is without a doubt the most critical part of any CCTV system.

As the first component to perceive and transmit images, the lens is without a doubt the most critical part of any CCTV system.

Characteristics:

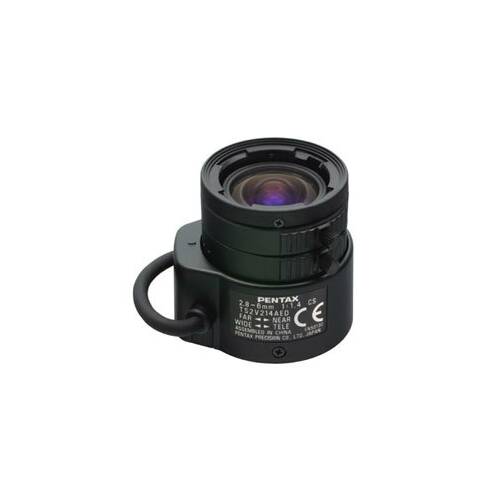

• Pentax model TS2V214AED
• CS mount VariFocal Day and Night lens
• Iris area 2, 8 - 6 mm
• DC controlled Iris
• Angle of view 72.26 - 35.35 degrees in combination with 1/4-inch CCDs
• Angle of view 96.70 - 47.04 degrees in combination with 1/3-inch CCDs
• Focus F1, 4 - 300 manually adjustable
• Minimum distance to the object 30 cm
• Suitable for CCTV and IP Cameras with a 1/3-inch or 1/4-inch CCD.
