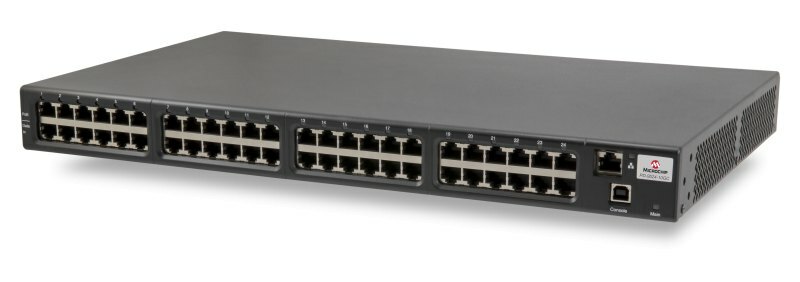

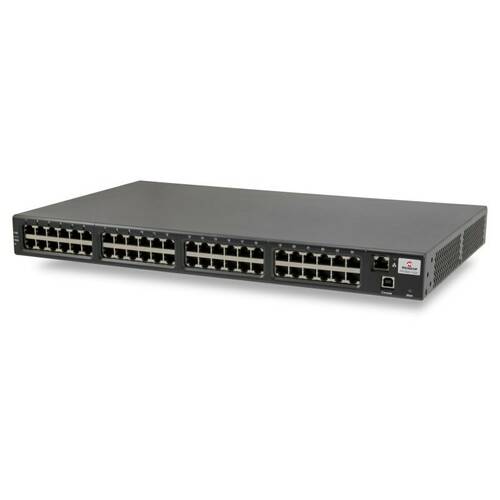

PowerDsine PD-9524-10GC/AC-EU

Microchip’s PD-95xx-10GC is a family of Power over Ethernet (PoE) midspans offering 60W power per the IEEE802.3bt standard. The family is available in 6-, 12- and 24-port configurations. Input power is provided through a universal AC voltage connector. The product is designed for use with a standard 10/100/1000 and 10G BaseT Ethernet network over a standard category 6A or better cabling plant, according to the IEEE802.3bt standard. The PD-95xx-10GC family incorporates power management through Microchip’s Powerview Pro software allowing the user to monitor and control the PD95xx-10GC via a remote network management station.

Key Features:

• Supports IEEE802.3bt type 3 standard PDs
• IEEE 802.3af/at backward compatible
• Legacy and pre-standard support
• 6, 12 and 24 ports
• Supports 10/100/1000 Mbps, 2.5/5/10 Gbps
• PowerView Pro, remote web-based SNMPv3 power management environment
