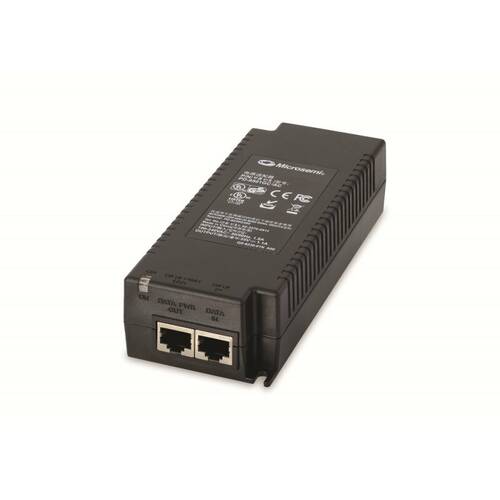

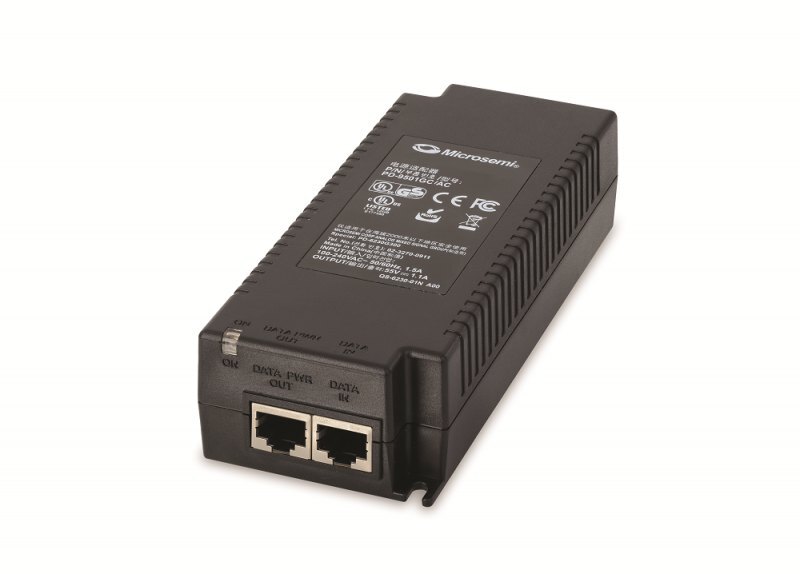

PowerDsine PD-9501GC/AC-EU

Microchip’s PD-9501GC is a single-port solution for remote powering of current as well as emerging high-power applications. The PD-9501GC is designed specifically to power IEEE 802.11n and IEEE 802.3bt access points, Pan-Tilt-Zoom (PTZ) and dome cameras, IP videophones, thin clients and other high-power Ethernet end terminals with 60W of power, and is also backward compatible and safe to use with any IEEE 802.3af/at terminal such as VoIP phones, IP cameras and wireless LAN access points. It can power both existing 10/100Base-T devices and emerging wireless Gigabit devices such as wireless IEEE 802.11n access points. The PD-9501GC provides power on all 4-pairs while being backwards compatible to 802.3af and 802.3at powered devices.

Key features:

• IEEE 802.bt Type 3 compliant
• IEEE 802.3af/at backward compatible
• Output power of 60W over 4-pairs is guaranteed
• Supports 10/100/1000Base-T applications
• Plug-and-play installation
• Safe: low power devices receive only the power they need
• Automatic detection and protection of non–standard
• Ethernet terminals
• Compact design fits easily in WLAN access point and IP
• camera installations
