Videotec ONXAB2

Videotec Article code ONXAB2

NetcamCenter {{ fullProductName }}

Stainless steel
In stock
Buy now
+ Quote

Description Videotec ONXAB2

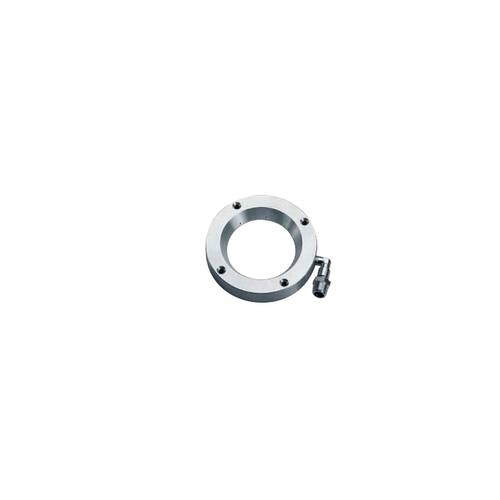

ONXAB2 Air Barrier with Tempered Window Glass for Videotec Housings

The ONXAB2 is a front flange that creates an air barrier in front of the camera housing's window, preventing the formation of dust deposits on the glass. It is fitted with tempered extra clear glass and a male 1/2" GAS air input with a flange featuring 32 holes. The unit is supplied as standard equipment on NXW housings and is available as an optional accessory for NXM housings. It supports a system pressure of up to 6 bar, with a recommended minimum operating pressure of 2 bar.

Key Features:

  • Creates an air barrier in front of the glass to prevent dust deposits
  • Tempered extra clear glass, 6mm thick
  • Operating temperature up to 260°C (500°F), thermal gradient up to 108°C (226.4°F)
  • Male 1/2" GAS air input with 32-hole flange
  • System pressure up to 6 bar, recommended minimum 2 bar
  • Standard on NXW housing, optional on NXM housing

Downloads

Datasheet Download pdf

Specifications

Product
Model number ONXAB2
GTIN code 700880445440
Brand Videotec
Category
Other Products
Various
Weight
1000 grams
Various
✓
Date published 2/19/2026
