Videotec NXW0K1025

The solid construction of this housing makes it suitable for heavy duty applications, such as the surveillance of ovens, foundries and other high temperature environments.

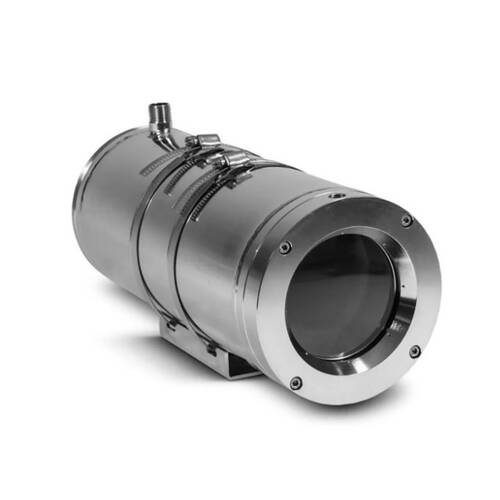

The NXW housing is entirely constructed from electropolished stainless steel and consists of a body with a double chamber for the circulation of a cooling liquid or air. The NXW is enclosed by two thick flanges at either end and allows cables to pass through by means of two PG13.5 cable glands on the back flange. The front flange can be equipped with tempered glass or quartz glass for higher temperature.

Key features:

• Made of AISI 316L electropolished stainless steel Steel
• Cylindrical chamber for internal circulation of cooling liquid linked to an external circuit
• IP66/IP67 Supplied air barrier
• 2 PG13,5 cable glands nickel-plated brass for external connections
• Available accessories: camera power supply, air filtering group for glass cleaning
• Tempered glass (max 260°C (500°F)) quartz glass (max 400°C (752°F) infrared glass (max 260°C (500°F))
