NVT Phybridge NV-FLX-04
NVT Phybridge
Article code NV-FLX-04
{{ fullProductName }}
Ethernet Extender, Device module with 4 ports, power supply required for device, increases the Ethernet distance up to 600 meters.
- Ethernet Extender, Device module with 4 ports, power supply required for device, increases the Ethernet distance up to 600 meters.
- Power supply required for device
Description NVT Phybridge NV-FLX-04

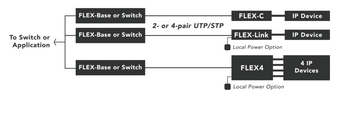

The FLEX series of adapters and extenders are designed to extend PoE far beyond standard Ethernet reach. When used with the FLEX-Base Extender, the FLEX adapters can deliver 10/100Mbps (symmetrical, full duplex) and PoE (up to 50W) over 1- (needs local power), 2-, or 4-pair UTP/STP with up to 2,000ft (610m) reach. This helps eliminate the costs and disruptions associated with IDF closet requirements. There are three adapter options that provide deployment flexibility.
Key Features:

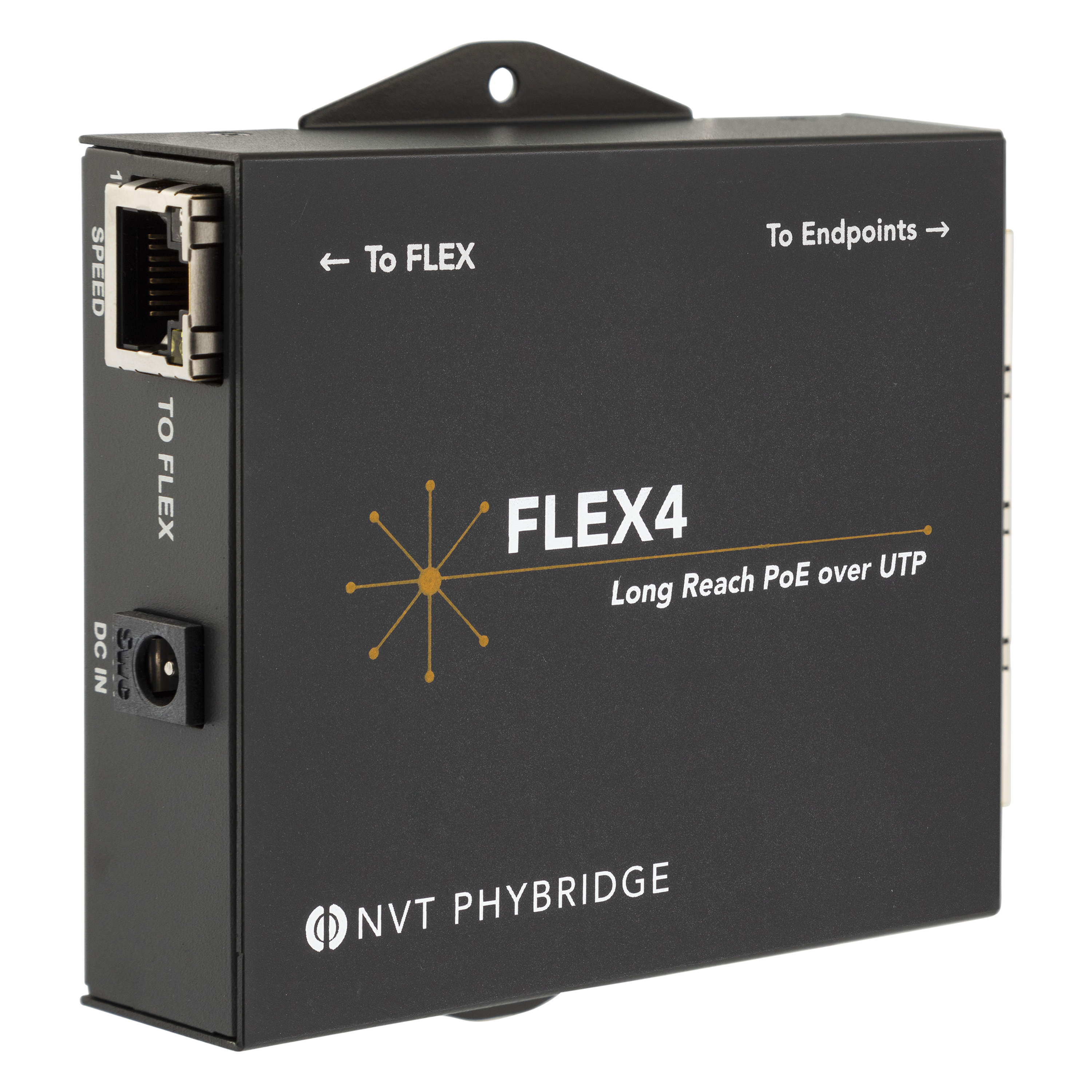

- FLEX4: 1-to-4 Port Long Reach 2 or 4 pair UTP adapter (up to 30 Watts per port)
- Complies with EN 50121-4 (Railway / Metro)
- Included10/100Mbps, full-duplex data ratePower injection or PoE passthrough via standard UTP or STP cableUp to 610 m (2,000 ft) at 100 Mbps via 4-pair, or 10 Mbps via 1-pair (local power required) or 2 -couple
- Operating temperature from -40 degrees to 70 degrees
Compatible products
Switches, PoE & power supply
Specifications
Product
| Model number | NV-FLX-04 |
| Brand | NVT Phybridge |
| Category |
