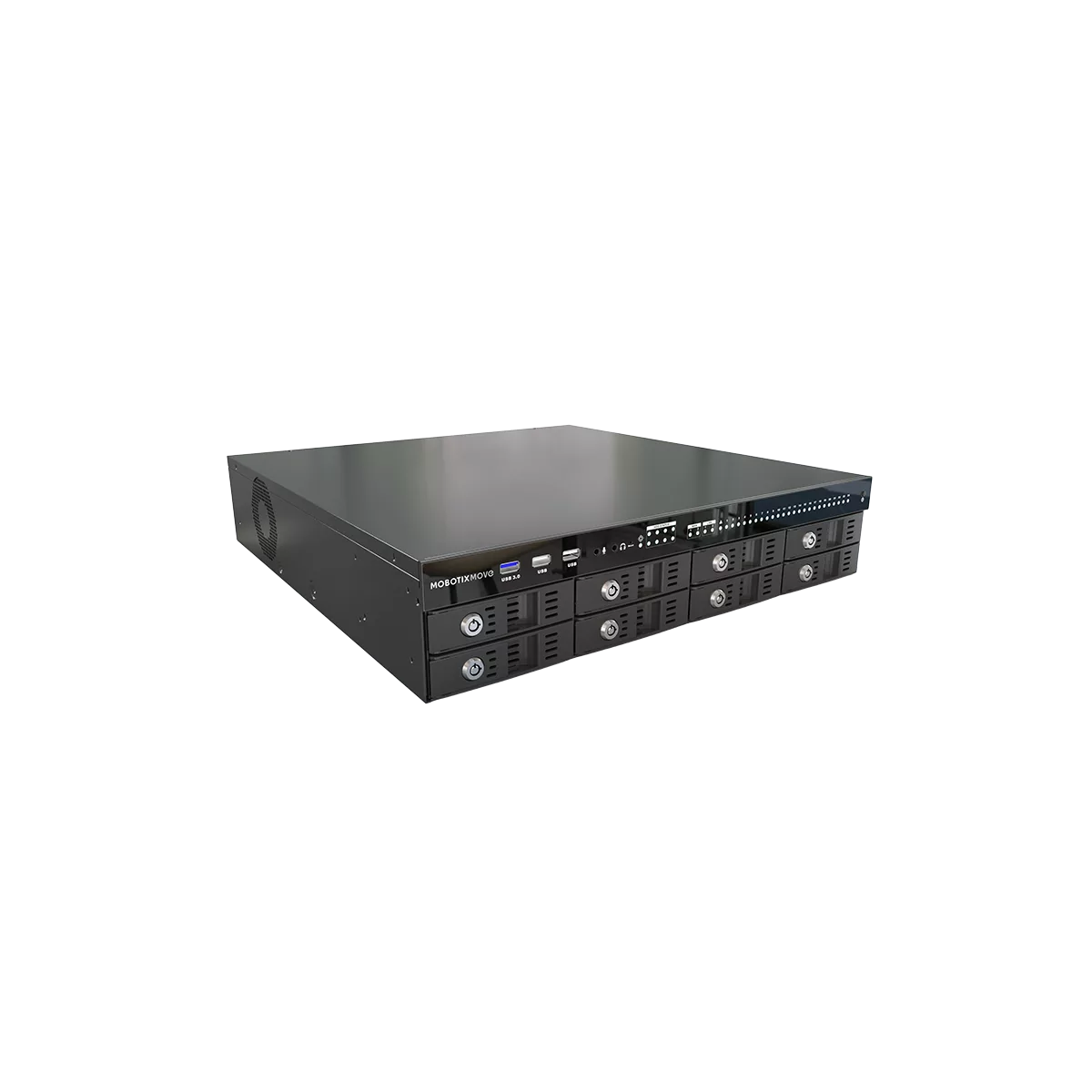

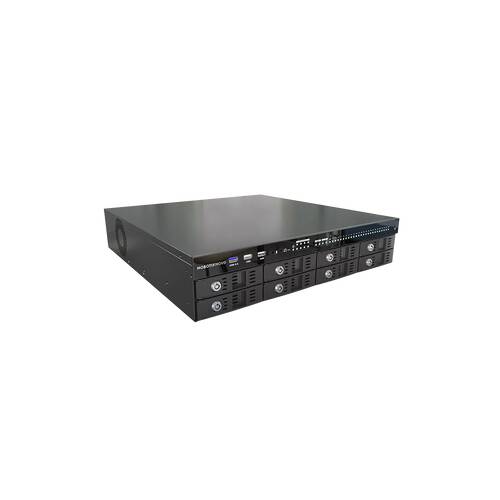

Mobotix Mx-S-NVR1A-64-POE24

MOBOTIX MOVE Plug & Play NVR Series

The MOBOTIX MOVE NVR Plug & Play series has been exclusively designed to support the MOBOTIX MOVE IP Camera series with powerful recording by deep integration protocols out-of-the-box. Integrated GB RAM support high Resolution Video Decoding and Recording on all supported video-input channels. The integrated 24-port PoE switch allows direct connection of IP cameras without extra power supply. It is equipped with iSCSI communication interfaces for seamless adaptation to the requirements of the installation. The web management interface allows monitoring and configuring PoE power consumption, network connection quality and controlling the PoE power support of ONVIF S/T-conformant 3rd-party cameras. This provides extensive flexibility in mixed camera environments.

This NVR comes standard without an HDD and is suitable for eight internal 3.5" SATA3 HDDs, up to 80TB.

64 channels, and 30W per port is available for the 24 PoE ports, with a maximum PoE budget of 360W.

Key features:

• 2MP Full HD up to 4K (12MP) IP camera support
• Native support of MOBOTIX MOVE, MOBOTIX IoT cameras and 3rd-party cameras via ONVIF protocol
• H.264/H.265 live video, recording and playback
• Dual streaming, up to 64 channels simultaneous real-time live, record and playback
• Integrated PoE+ switch with 24 (802.3af/at) ports for Plug & Play MOVE and 3rd-party camera integration
• Can handle additional 40 Plug & Play MOVE & 3rd party cameras via external switch
• Full HD local dual display/monitor output (HDMI/DisplayPort)
