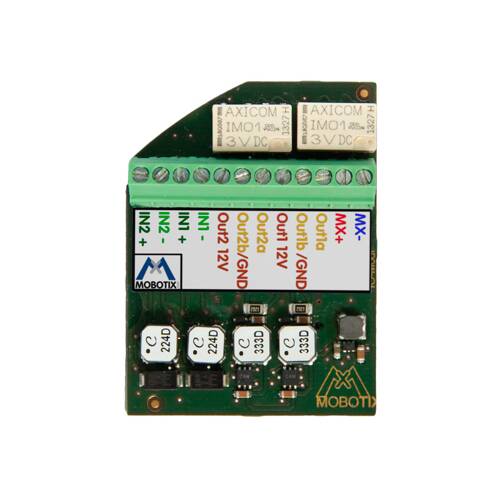

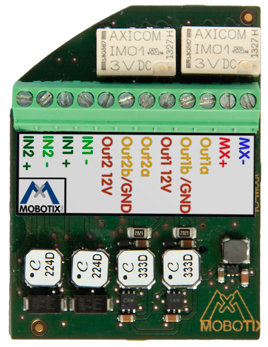

Mobotix MX-OPT-IO3-INT

• Practical, optional expansion board for indoor cameras p25, i25 and c25
• Expands any camera with two extra inputs and two 12V outputs
• Provides access to the two-wire MxBus
• Outputs can be connected directly to a relay and therefore higher voltages and loads

The MX Bus IO module is a practical, optional extension card for all MOBOTIX p25, i25 and c25 indoor cameras, which is easily attached and secured to the rear of the camera (for i25 and c25) or mounted on the camera card (only with p25). The module expands any camera with two additional inputs and two 12V outputs and provides access to the two-wire MxBus. The outputs can be directly connected to a relay and therefore higher voltages and loads, eg lamps or motors. MxBus is a coded two-wire cable developed by MOBOTIX for transferring data and power. With this solution, users can easily and securely power and control various MOBOTIX IO devices over distances of more than 100 m.

Position of MX Bus IO module in indoor cameras p25, i25 and c25
