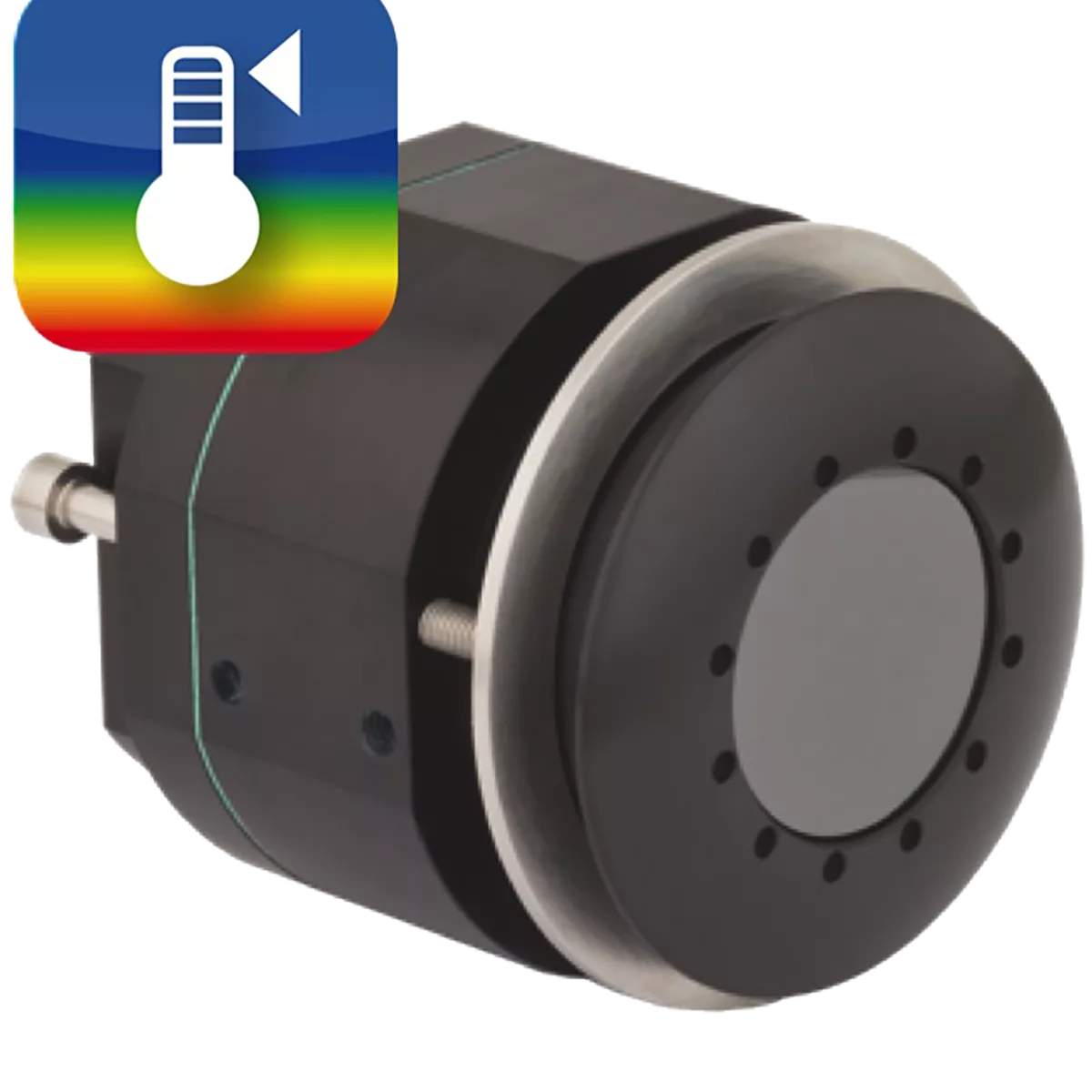

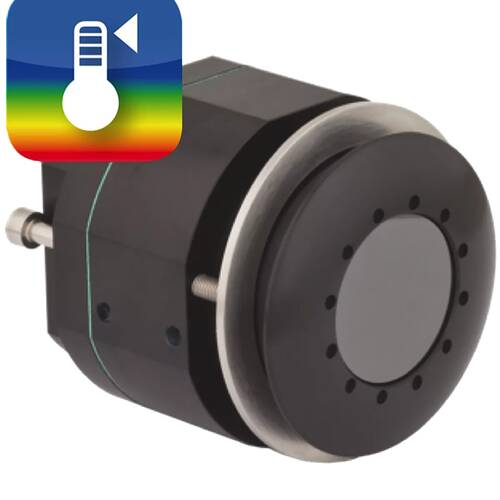

Mobotix Mx-O-SMA-TS-R090

Thermal Sensor Module TR for the S16/S15

• Thermal radiometry (TR): calibrated thermal sensor for temperature events from -40 to 550°C (-40 to 1022°F)
• NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second
• Germanium Lens (included): B090 equivalent, horizontal/vertical image angle 35°/27°
• Image size: 336 x 252 pixels (can be scaled up to 6MP0
• IP66, -30 to 60°C (-22 to 140°F)
• Housing: Black anodized aluminum
• Camera connection via MOBOTIX sensor cable (max. 3 m/9.8 ft, to be ordered individually)
