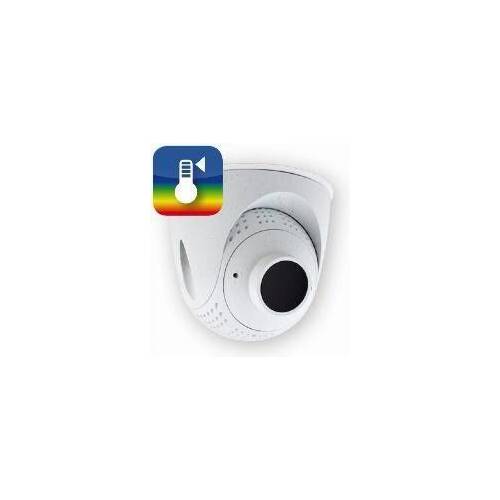

Mobotix Mx-O-SMA-TP-R119

PTMount Thermal Sensor Module TR for Mobotix S16 / S15

• Thermal radiometry (TR): calibrated thermal sensor for temperature events from -40 to 550 ° C
• NETD type. 50 mK
• Germanium lens (included): B119 equivalent, horizontal / vertical viewing angle 25 ° / 19 °
• Image size: 336 x 252 pixels (can be scaled to 6 MP)
• IP66, -30 to 60 ° C
• Camera connection via MOBOTIX sensor cable (2m is included)

TR technology:

Temperature values ​​measured with TR technology can automatically trigger an event from the camera (alarm, call, activation of a signal output, etc.) If the temperature rises above or below an individually set trigger level. All settings can be adjusted via the camera firmware using a web browser.

2 PTMount Thermal Sensor Modules can also be connected to an S16 main unit:

• Mx6 system platform with H.264 and ONVIF compatibility
• S16 DualFlex housing with one or two thermal sensor modules
• 18 module options: with / without TR, three viewing angles, three housing designs
• Optical and thermal sensor modules can be combined as desired
• MxActivitySensor can also be used in total darkness
• PoE thermal camera with a max. Power consumption of 8 W
• Weatherproof and robust camera housing (IP66, IK06)
