Mobotix MX-Door2-INT-PW
Mobotix
Article code MX-Door2-INT-PW
{{ fullProductName }}
End-of-life: Product might no longer be available

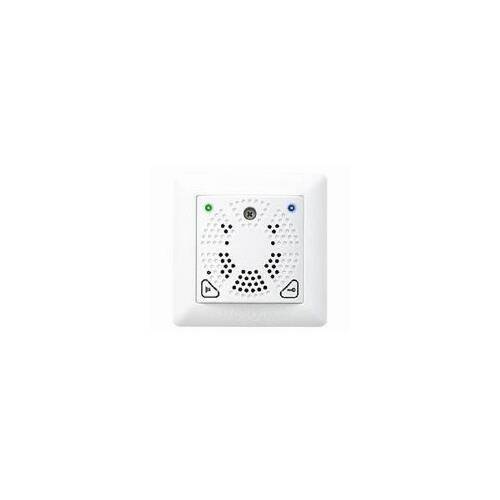

DoorMaster For In-Wall Mounting
Would you like personal advice on alternatives?
Description Mobotix MX-Door2-INT-PW
- Security door opener with internal access code memory: A MOBOTIX door station may be coupled with the MOBOTIX MX-DoorMaster, making it impossible to open the door by forcibly removing the system and bypassing the connecting cable
- 2nd product generation, suitable for: IP video by stations with an T2x and S1x as by camera
- Integrated (rechargeable) battery power supply for access modules
- Security through opener / bell with access code storage (protected against manipulation)
- Connection for door opener, door sensor and door lock sensor
- Interface and power supply: MxBus (max. 50 m distance to door station)
- User interfaces: 2 status LEDs, 2 function buttons, integrated speaker (doorbell)
- Inputs: 2 galvanically separated inputs with shared ground connection (AC / DC, self-powered up to 48 V)
- Outputs: 1 isolated relay output (AC / DC, 24 V / 1 A) or 1 connector for standard door opener (6 to 12 V AC), 1 output for MOBOTIX theft protection (12 V DC)
- Protection class: IP20 (DIN EN 60529)
- Operating temperature: -5 to 40 ° C / 23 to 104 ° F (DIN EN 50155)
- Switch time: max. 5 s
Downloads
| Installation manual | Download |
Specifications
Product
| Model number | MX-Door2-INT-PW |
| GTIN code | 4047438019934 |
| Brand | Mobotix |
| Category |
