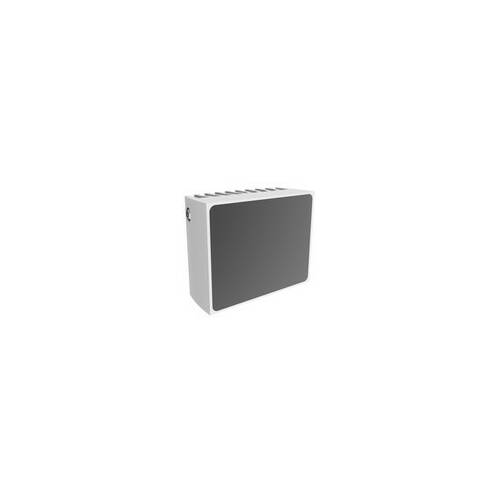

Mobotix Mx-A-IRA-30

Mobotix infrared heater (860nm) with PoE +

Weatherproof infrared heater in aluminum housing (IP67) with automatic sensor on / off (threshold: 3 lux, delay with switch-off: 150 s).

• 6 variants, lighting angle from 15 ° to 120 ° (horizontal and vertical lighting angles are the same)
• Easy installation
• PoE + power supply via network connection (IEEE 802.3at) , power consumption: max. 19 w
• Incl. standard bracket for wall and ceiling mounting, 0.9 m patch cable with RJ45 plug

MOBOTIX offers six high-quality MxIRLight spotlights in an identical, compact, solid aluminum housing (H x W x D: 90 x 115 x 51 mm). The Spotlights differ due to their lighting angles (horizontal and vertical: 120 °, 90 °, 60 °, 45 °, 30 °, 15 °) and therefore also through them maximum range * (20 m, 35 m, 50 m, 80 m, 120 m, 160 m). The smaller the lighting angle, the narrower but also the wider the lighting. The illumination angle of the emitter must match the angle of view of the camera.

* max. Achievable range also depends on the reflection behavior of the irradiated scene / objects

Possible items:
Mx-A-IRA-120 (illumination angle 120 °, range up to 20 m)
Mx-A-IRA-90 (illumination angle 90 °, range up to 35 m)
Mx -A-IRA-60 (lighting angle 60 °, range up to 50 m)
Mx-A-IRA-45 (lighting angle 45 °, range up to 80 m)
Mx-A-IRA-30 (lighting angle 30 ° , range up to 120 m)
Mx-A-IRA-15 (lighting angle 15 °, range up to 160 m)
