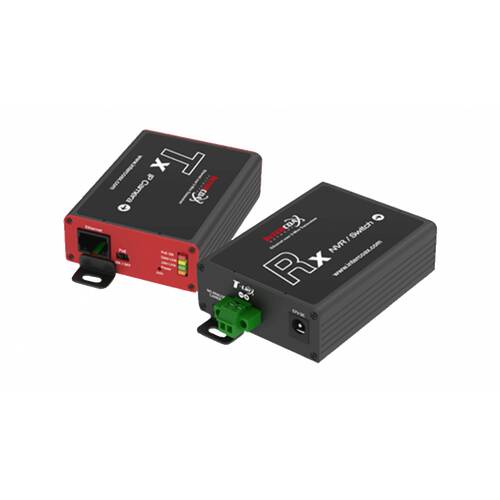

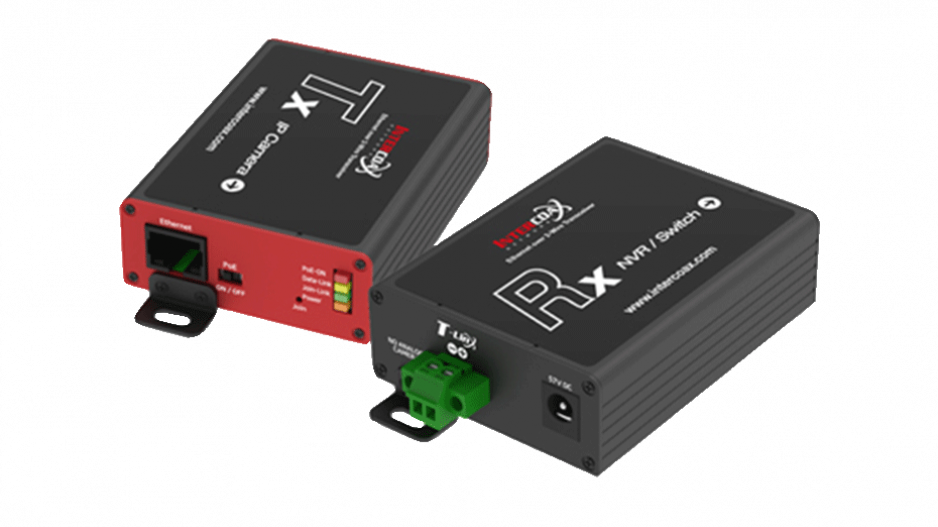

Mobotix Mx-A-ETP1A-2601-SET

Mx-ETP1A-2601-SET Complete set consisting of two two-wire transmitting and receiving units - Transmission of Ethernet and PoE+ Power supply via two-wire line according to IEEE1901 - Requires additional power supply (e.g. Mx-A-ETP1A-2601-POW).

Key features:

• Transmission of Ethernet and PoE+ power supply via two-wire line according to IEEE1901
• Simple connection of 10/100 Mbit Ethernet end devices
• Max. 95 Mbps transmission bandwidth,
• Range up to 600m for data / 300m for PoE (depending on the quality of the two-wire line)
• 128 bit AES network data encryption
• Power supply of transmitter (Tx) and receiver (Rx) as well as terminal device via PoE+ network switch or via external power supply 56VDC / 1.2A (not included in delivery)
• Connected end devices are supplied via PoE switch IEEE802.3af (PoE), IEEE802.3at (PoE+), UPoE up to 60W (requires ext. power supply).
• Status LED (data, power supply, data link, PoE)
• Integrated overvoltage protection (IEC 61000-4-5 4kV (1.2 / 50us), 2kA (8 / 20us))
• Supply voltage: Tx: T-Linx or DC12V~57V; Rx: PoE Switch or DC48V~57V
• Operating temperature: -20 to +60 °C
• Dimensions Rx/Tx (LxWxH): 80.4 x 61.6 x 24.0 mm
• Weight Rx/Tx: 102g each
