AXIS M7010 16 licenses

Bundle of a (1) AXIS M7010 Video Encoder and a 16-camera basic license from AXIS Camera Station video management software for monitoring, recording, playback and event management. Kits can be expanded and combined into a system with max. 50 cameras. Additional cameras and AXIS Camera Station upgrade licenses can be ordered separately.

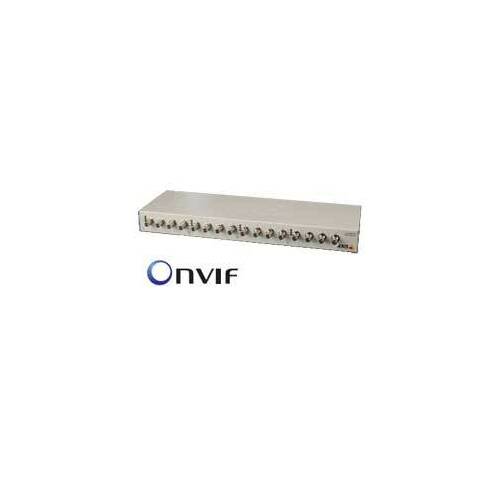

AXIS M7010 16-channel Video Encoder

High quality video H.264 and Motion JPEG simultaneously Edge storage High resolution quad view PTZ support Power over Ethernet

Efficient 16-channel solution

The AXIS M7010 Video Encoder is an easy-to-use 16-channel video encoder with good video performance. It can simplify the migration to network video without replacing the existing cameras.

Affordable and powerful

The AXIS M7010 offers edge storage via four microSDHC memory card slots. It supports all types of analog cameras including PTZ (pan / tilt / zoom) and PTZ domes. The video encoder has both RS-422 and RS-485 for controlling analogue PTZ cameras.

The easy way to a smarter CCTV system

The AXIS M7010 is perfect for large analog video installations, especially where an IP network infrastructure is already present. The encoder draws its power via Ethernet, the same cable that is already used for data transmission, which drastically simplifies installation. An external AC adapter is included for those who do not want to use PoE.

Less bandwidth and storage

The AXIS M7010 can deliver two video streams (per channel) at the same time, one in H.264 and the other in Motion JPEG, at 15 frames per second in resolutions up to D1 (720x576 in PAL). The H.264 video compression format reduces bandwidth and storage consumption without compromising image quality. Motion JPEG is supported for flexibility.

Characteristics:

16-channel Video Encoder Table model, also suitable for rack mounting (optional) Simultaneous (1) H.264 and (1) Motion JPEG streams per channel Resolutions: 176x120 to 720x576 and176x120 to 1536x1152 for quad view Up to 15fps in all resolutions Intelligence: motion detection and tamper alarms Power supply via PoE or 8 ~ 20V DC 10BASE-T / 100BASE-TX Ethernet (RJ45) Energy consumption up to 28 Watt Image rotation 90, 180 and 270 degrees 4 microSDHC slots PTZ support via driver upload No IO or Audio

Supplied including: Power supply, assembly and connector kits, Installation Guide, CD with installation and management tools, software and Users Manual, Windows decoder user licenses.
