2N IP Force extra switch NO / NC
2N
Article code 9151010
{{ fullProductName }}

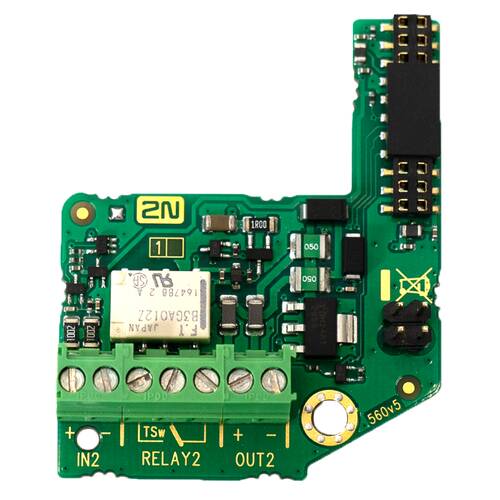

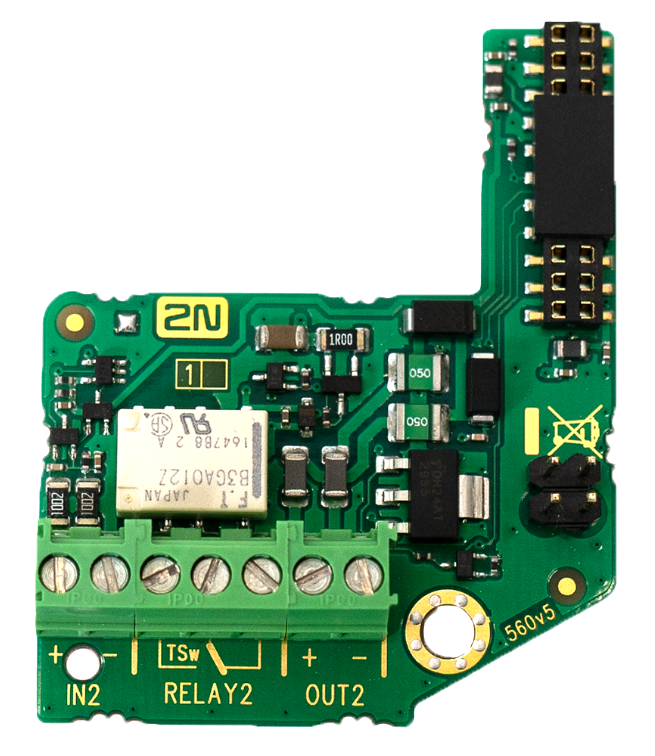

Description 2N IP Force extra switch NO / NC
The IP Force extra switch NO / NC is a passive switching up to 48 V / 2 Amp or active switch 12 V / 700 mA, including tamper switch for alarms when opening the front panel.
It can be used to control a second device, passive relay switch with NO / NC contact up to 30 V / 1 Amp AC / DC, active switch output: 9 to 13 VDC depending on the power supply (PoE: 9 V, adapter: supply voltage - 1 V), max. 700 mA.
Compatible products
Door intercom
- 2N 2N IP Force 2.0 camera 1 button
- 2N IP Force 2.0 camera 1 button with pictograms and ready card reader
- 2N IP Force 2.0 camera 2 buttons with ready card reader
- 2N IP Force 2.0 camera 4 Buttons
- 2N IP Force 2.0 camera with 1 button and keypad
-
2N IP Force 1 button
EOL
-
2N IP Force 1 button with keypad
EOL
-
2N IP Force 1 button with pictograms
EOL
-
2N IP Force 2 buttons
EOL
-
2N IP Force 4 buttons
EOL
-
2N IP Force HD camera 1 button
EOL
-
2N IP Force HD camera 1 button met keypad
EOL
-
2N IP Force HD camera 1 button with pictograms
EOL
-
2N IP Force HD camera 2 buttons
EOL
-
2N IP Force HD camera 4 buttons
EOL
-
2N IP Force SD camera 1 button
EOL
-
2N IP Force SD camera 1 button with keypad
EOL
-
2N IP Force SD camera 1 button with pictograms
EOL
-
2N IP Force SD camera 2 buttons
EOL
-
2N IP Force SD camera 4 buttons
EOL
Mounts
Specifications
Product
| Model number | 9151010 |
| GTIN code | 8595159500942 |
| Brand | 2N |
| Category |
Other Products
Access control
|
| HS Code |
852990
|
| Country of origin |
Czechia
|
| Weight |
60 grams
|
| Size (lxwxh) |
110
x 132 x 31 millimeters
|
|
2N Series
|
IP Force
|
|
Access Control
|
Access control accessories
|
|
Toegangscontrole functies
|
Overig Toegangscontrole
|
| Date published | 6/3/2020 |
