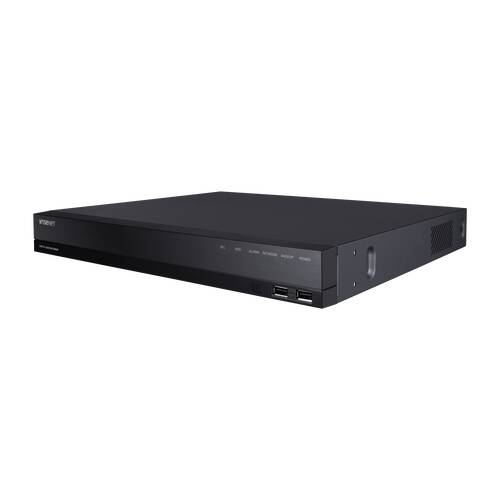

Hanwha HRX-435

HRX-435: 4CH Pentabrid DVR supporting AHD, HDTVI, HDCVI, CVBS and IP up to 8MP

The HRX-435 is a 4-channel Pentabrid DVR that accepts AHD, HDTVI, HDCVI, CVBS and IP camera signals on the same recorder. It supports a total of up to 6 channels, combining 4 analog inputs with 2 additional network channels, at resolutions up to 8MP. Video is compressed in H.265, H.264 or MJPEG, with recording rates of up to 8/8fps at 8MP and 12/12fps at 5MP. The recorder features coaxial control, simultaneous HDMI and VGA monitor output, and supports up to two SATA HDDs of up to 6TB each. Setup and remote connection are simplified through its P2P service with QR code connect.

Key Features:

• 5-in-1 Pentabrid DVR: AHD/HDTVI/HDCVI/CVBS/IP inputs
• Total 6CH (4 analog + 2 network), up to 8MP
• H.265, H.264, MJPEG recording up to 8/8fps@8MP, 12/12fps@5MP
• Coaxial control
• HDMI/VGA dual monitor output
• Up to 2 SATA HDDs (6TB/HDD), P2P QR code connect
