Videotec HOV32K2A716

Aluminium housing with IPM technology for IP cameras

The HOV Hi-PoE IPM housing optimally operates with POE and Hi-POE technology, using the power supplied by the Ethernet cable as the sole source of power for all connected devices, thus ensuring maximum efficiency and flexibility of the network system as well as user-friendly installation and low costs. The innovative IPM (Intelligent Power Management) system enables extremely quick and easy installation with the use of a single Ethernet connecting cable. The Hi-POE IPM system automatically detects all the options, like heating, fan and illuminator and then autonomously balances the power to ensure suitable distribution of the same to the connected devices. This guarantees the optimal operation of the IP camera between -30°C (-22°F) and +60°C (140°F), with heat regulation and cold start (activation at low temperature). The IPM system offers an opportunity to refit analogue systems with already installed housings by simply changing the slide and internal electronics. This enables the digital conversion, speeding up the installation and therebyminimizing costs and environmental impact.

Key features:

• IPM technology (Intelligent Power Management)
• PoE/Hi-PoE power supply for heating, demisting, illuminator, fan and PoE
• network camera
• Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus
• IP66/IP67 (with cable glands or optional sealing rings)
• Special cable gland for a fast Ethernet connection/disconnection without cutting
• the RJ45 connector
• Pre-arranged for internal cable management bracket
• Version with fan with double air filter
• Version with anti-icing heated glass

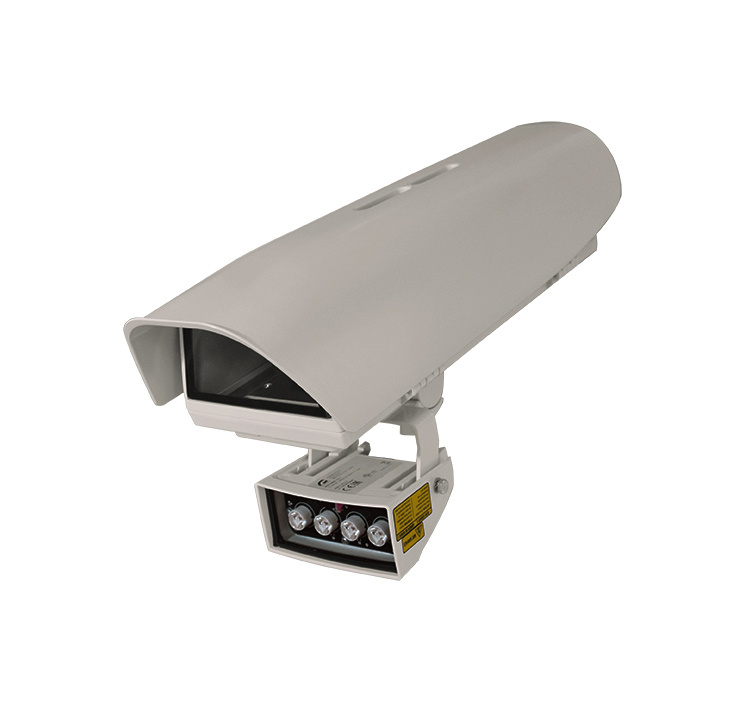

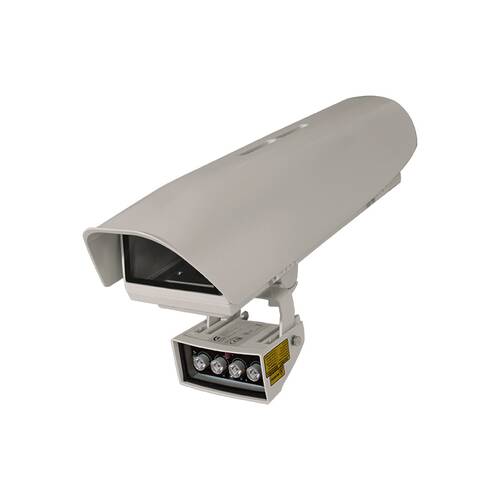

• Pre-arranged to supply a GEKO IRH illuminator
