Videotec HEG wiper

Videotec Article code VT-VIP6A1

NetcamCenter {{ fullProductName }}

Videotec HEG wiper (VIP6A1)
In stock
Buy now
+ Quote

Description Videotec HEG wiper

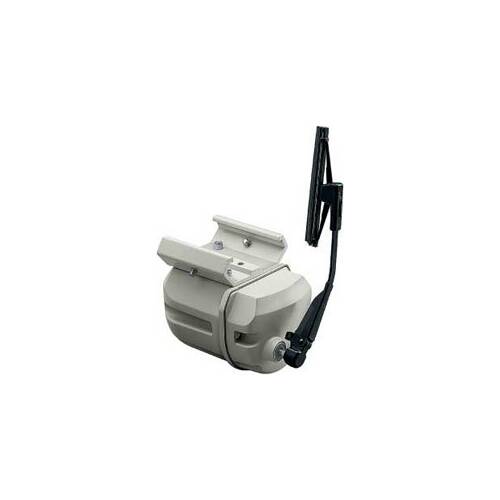

Wiper Kit for HEG Camera Housings – Clear Vision in Any Weather

The VIP6A wiper kit is designed to be installed directly on the body of HEG series camera housings, keeping the housing window clear for an unobstructed view. It also completes the support for the pump washing injector, allowing the wiper to work alongside a washing system. The kit is available in two versions, VIP6A1 (230Vac) and VIP6A2 (24Vac), both drawing a maximum of 7W. Built with a reinforced polypropylene enclosure and a stainless steel/aluminium wiper blade, it is rated IP66 and finished in RAL9002. It is engineered to operate reliably across a wide temperature range, from -20°C (-4°F) up to +60°C (140°F).

Key Features:

  • Direct installation on HEG housing body
  • Completes support for the pump washing injector
  • Available in 230Vac (VIP6A1) and 24Vac (VIP6A2) versions, 7W max
  • IP66-rated reinforced polypropylene enclosure
  • Stainless steel/aluminium wiper blade
  • Operating temperature range -20°C to +60°C (-4°F to 140°F)

Downloads

Datasheet Download pdf
Installation manual Download pdf

Specifications

Product
Model number VT-VIP6A1
Brand Videotec
Category
Other Products
Housing & Masts
Weight
943 grams
Size (lxwxh)
145 x 265 x 145 millimeters
Various
Others
Date published 7/18/2019
