AXIS GP2 Cctv Panel 1 PS 24V Eac

Explosion-protected power supply

Product is compiled on request and therefore has a longer delivery time. For more information you can contact us.

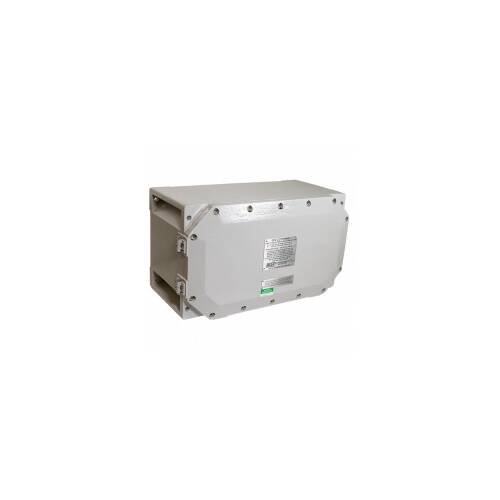

GP2 CCTV Panel 1 PS 24 V is a power supply certified for use in potentially explosive atmospheres according to ATEX,
IECEx and EAC. It is made of SAE 316L stainless steel with a corrosion-resistant epoxy paint finish. It is pre-mounted
with fuses, terminals, RJ45 coupler and a 115/230 V AC transformer, which provides 24 V AC for explosion-protected
cameras and washer tank. The operating temperature ranges from -40 °C to 55 °C (-40 °F to 131 °F).

Stainless steel 316 EAC approved power supply with Corrosion resistant epoxy paint finish. Shipped pre-mounted with (1) Transformer 115/230 VAC primary, 24VAC Secondary providing 24VAC for XF40/XP40 and washer, (2) Fuses, (3) RJ45 Coupler CAT6
The cabinet has 3 open M20 cable entries and a fourth plugged entry and is EX d IIB T4, certified for temperatures between -40°C and +55°C. Weight is 85kg.

Key Features:

• Stainless steel (SAE 316L) housing with a corrosion-resistant finish
• ATEX, IECEx and EAC certified for use in zones 1, 2, 21 and 22
• Suitable for explosion-protected cameras and washer tank
