Videotec DTWRX

Videotec Article code DTWRX

NetcamCenter {{ fullProductName }}

Data receiver for remote control of the wiper and WASPT series pumps in stand-alone housings
In stock
Buy now
+ Quote

Description Videotec DTWRX

Telemetry Data Receiver for Wiper and Washer Remote Control

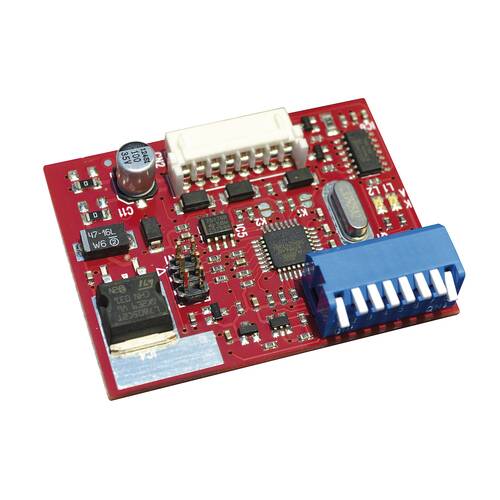

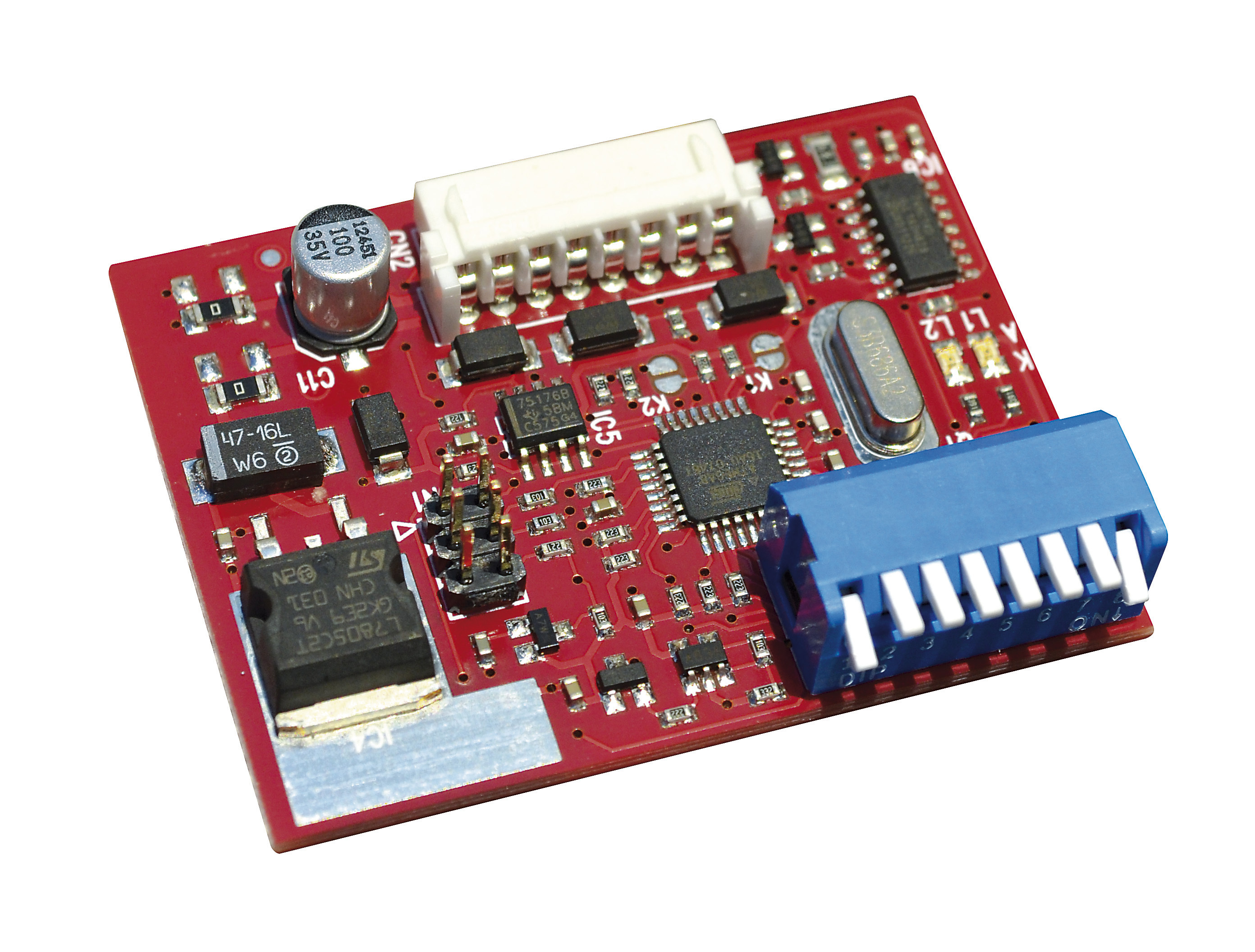

The DTWRX is an optional receiver board for remote control of a wiper and washer pump, designed exclusively for use with the WASPT pump series. It installs easily thanks to its dedicated connector, and enables wiper and washer control when the housing is stand-alone, not mounted on a P&T unit and therefore without a telemetry receiver. The DTWRX communicates over a half duplex RS-485 serial interface, receiving telemetry data from a keypad or SM matrix range at distances of up to 1200m (3937ft). It supports PELCO D and VIDEOTEC MACRO protocols, with 31 selectable addresses set via DIP switch and two status LEDs indicating stand-by and receiver control.

Key Features:

  • 2 functions: WIPER and WASHER control
  • Works exclusively with WASPT pump series
  • 31 selectable addresses via DIP switch
  • Half duplex RS-485 serial communication, up to 1200m (3937ft)
  • Supports PELCO D and VIDEOTEC MACRO protocols
  • 2 status LEDs: Stand-by and receiver control

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf

Specifications

Product
Model number DTWRX
Brand Videotec
Category
Other Products
Various
Weight
132 grams
Size (lxwxh)
255 x 160 x 50 millimeters
Various
Others
Date published 7/2/2021
