Bosch DSA-N2E8X4-12AT

DSA E2800 represents the next generation of DSA E‑Series, the iSCSI-based digital video disk arrays by Bosch. They are state-of-the-art platforms designed for the security industries most demanding digital video storage applications to manage relentlessly growing digital video data.

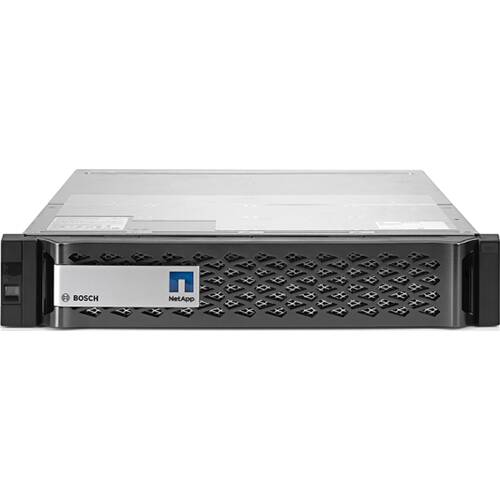

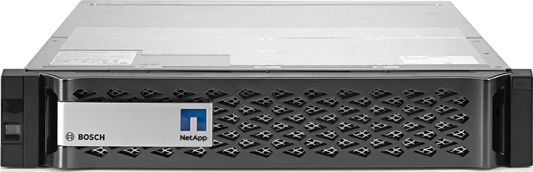

DSA E2800 is based on one 2U controller unit with 12 internal 3.5”, 7.2 K, NL-SAS (Serial Attached SCSI), enterprise HDDs (Nearline SAS).

The controller unit is available as a standard single controller configuration and as a dual controller configuration for high availability requirements.

This storage system is a high-performance solution designed with robust flexibility that makes it a great fit for wide-ranging video surveillance requirements. Its balanced performance is designed for supporting high bandwidth and I/O intensive workloads.

The DSA E2800 fully redundant I/O paths, advanced protection features, and extensive diagnostic capabilities deliver high levels of availability, integrity, and security.

Key features:

• Scale-up network storage solution: controller unit with 12 internal HDDs expandable via stateof-the-art SAS interface-connected expansion units
• Configurable hardware-based RAID/DDP protection (RAID‑5, RAID‑6 or DDP) for highest system performance
• Redundant hot-swappable power supplies and cooling fans
• Two 10 Gigabit Ethernet ports for highest speed iSCSI connectivity
• Fully modular design for ease of service and protected by NetApp services, including a 3 years next business day on-site support
• Maximum IP camera channels: 400
