Bosch DIP-7384-8HD

The DIVAR IP all-in-one 7000 family is an affordable, simple and reliable all-in-one recording, viewing and management solution for network surveillance systems of up to 256 channels (with 8 channels prelicensed). DIVAR IP all-in-one 7000 2U is a 2U rack mount unit that combines advanced management and state-ofthe-art recording management into a single costeffective, plug-and-play IP recording appliance for ITminded customers.

Key features:

• RAID-5 protected (standard configuration), allin-one video management solution for up to 256 channels
• Out-of-the-box IP video management solution with up to 32 TB storage capacity
• Instantly find what you are looking for
• Advanced user and alarm management
• 3 years hardware warranty, including next business day services

Standard included licenses:

• 8 camera licenses
• 5 workstation licenses
• 5 keyboard licenses
• 1 DVR licenses

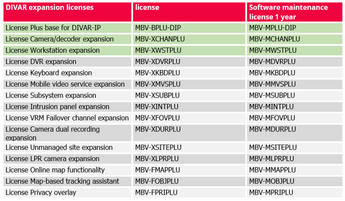

BVMS licenses for this DIVAR

Example 1: I want to have 16 cameras in my system, what licences do i need?

• I need to purchase the base license (MBV-BPLU-DIP), which includes 32 channels, and the corresponding SMA (MBV-MPLU-DIP).

Example 2: I want to have 40 cameras in my system, I more workstation; what licenses do I need?

• I need to purchase the base license(MBV-BPLU-DlP), which includes 32 channels, and the corresponding SMA* (MBV-MPLU-DIP).
• To add 40 cameras in total, I require 8 more IP channel licenses (8x MBV-XCHANPLU) as well, and 8 associated SMAs* (8x MBV-MCHANPLU).
• In addition, I need to purchase a workstation expansion license (MBV-XWSTPLU), with the corresponding SMA* (MBV-MWSTPLU), to add an additional workstation.

Note*: An SMA is necessary for Bosch support and software updates. If an SMA has not been purchased but is desired later, it must be purchased afterwards for the missing years.

Example: after 2 years without SMA support or update, it is necessary to purchase the previous 2 years when purchasing the SMA (a total of 3 years of SMA).

SMA support is required for all purchased modules of the operational system.
