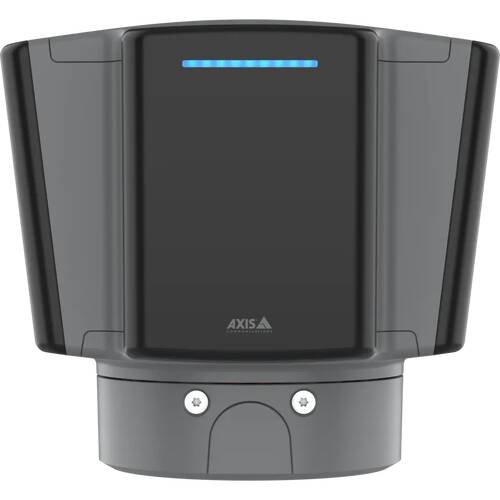

AXIS D2124-VE Radar

Built on ARTPEC-9, AXIS D2124-VE delivers 360° detection and AI-powered classification across expansive areas in all weather and light conditions. It detects humans up to 140 m (460 ft) away across an area of 40,000 m² (430,000 ft²). Unique box-shaped detection and recognition zones simplify coverage planning and system design. Despite its wide coverage, it offers low average power consumption per unit area (per m²/ft²) for greater energy efficiency. It's designed to be mounted on a pole for its great 360° coverage, making it ideal for, for instance, mobile surveillance trailers and rooftops. Using the same mounting interface as AXIS Q62 PTZ Cameras, it's easy to add to existing installations.

AXIS D2124-VE frequency operation band 24.05–24.25 GHz, FMCW, for pole mounting outdoor. With built-in analytics including classification of humans and vehicles. Open API for software integration, microSD/SDHC memory card slot for edge storage, 90W PoE out to power Axis Q62. Typical power consumption 13W, when 90W PoE Out to power an additional device, then Axis High PoE 120W is required. IP66/IP67, IK09/IK10, NEMA 250 Type 4X, and NEMA TS 2. Operating conditions -40°C to 60°C (-40°F to 140°F).
