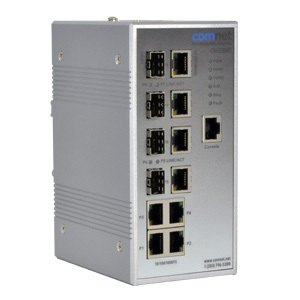

Comnet CNGE8MS

The ComNet CNGE8MS is an 8-port Managed Ethernet Switch designed to reliably operate in harsh, environmentally challenging applications. It features four (4) 1000BASE-TX and four (4) gigabit combo ports. The four combo ports are 10/100 / 1000Mbps configurable for either Cat5-e copper, or multimode or single-mode optical fiber by the use of optional ComNet SFPs for connector type and distance. Exclusive to ComNet is C-Ring, a feature that protects the network from interruptions or temporary malfunctions with fast recovery technology. Legacy ring allows the switch to be used in an existing ring of ComNet X-Ring enabled switches. Redundant DC inputs are included for uninterrupted operation in the event of a power supply failure. The electrical ports support the 10/100 / 1000Mbps Ethernet IEEE802.3 protocol, and auto-negotiating and auto-MDi / MDiX features are provided. These network-managed layer 2 switches are optically and electrically compatible with any IEEE802.3 compliant Ethernet device. The CNGE8MS is DIN rail or wall mountable.
