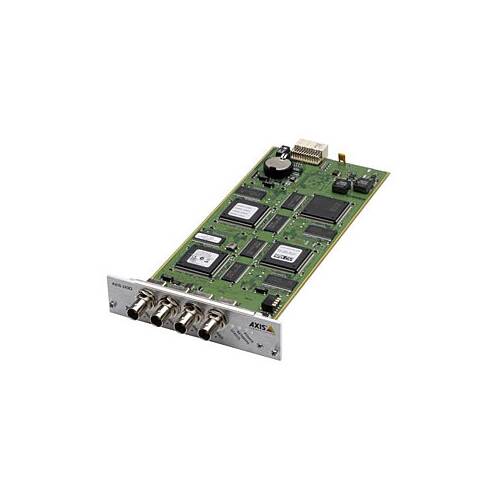

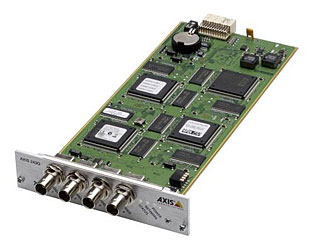

AXIS 243Q

- Four-channel blade video server - one IP address for each analog camera
- Full frame rate in MPEG-4 or Motion JPEG on all channels
- Video motion detection and pre/post-alarm buffer
- Support for PTZ and dome cameras

Full frame rate in MPEG-4 or Motion JPEG in all resolutions
The AXIS 243Q Blade Video Server enables high resolution, full frame rate video surveillance and remote monitoring in MPEG-4 or Motion JPEG on all four channels. The video server converts analog video into high quality, de-interlaced digital video, and can deliver the highest resolution, 4CIF, at 30/25 (NTSC/PAL) frames per second.

High-density video encoder rack solution
The AXIS 291 1U Video Server Rack is a 19'' rack that can use any combination of up to 3 interchangeable and hot-swappable Axis blade video servers. The Axis video server rack solution migrates 4-12 analog cameras to IP-based, digital video streams using a single Ethernet port. The combination of AXIS 243Q Blades together with the AXIS 291 1U thus makes a higher density of video channels compared to a standalone solution.

Powerful event management
The AXIS 243Q Blade allows for powerful event management with multi-window motion detection, as well as inputs/outputs for connecting external relays and sensors for activating lights, locking/unlocking doors etc. Pre- and post-image alarm buffering secures images just before and after an alarm.

Advanced network security
A comprehensive set of security features, including multiple user access levels, HTTPS encryption, possibility to disable unused network services for example ftp, IEEE802.1X and IP address filtering, ensures secure video handling and configuration. In addition, the AXIS 243Q has support for Quality of Service (QoS) which helps secure the necessary bandwidth for streaming video and control commands over a network.
