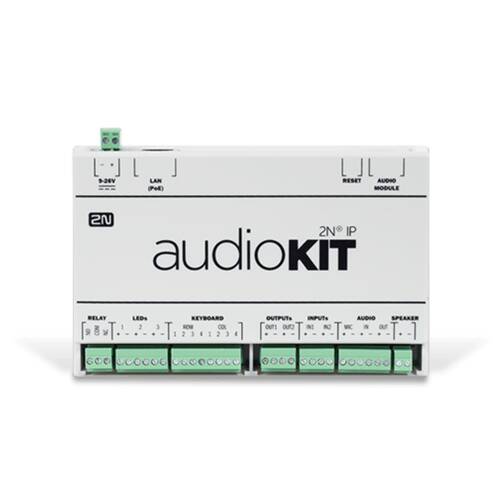

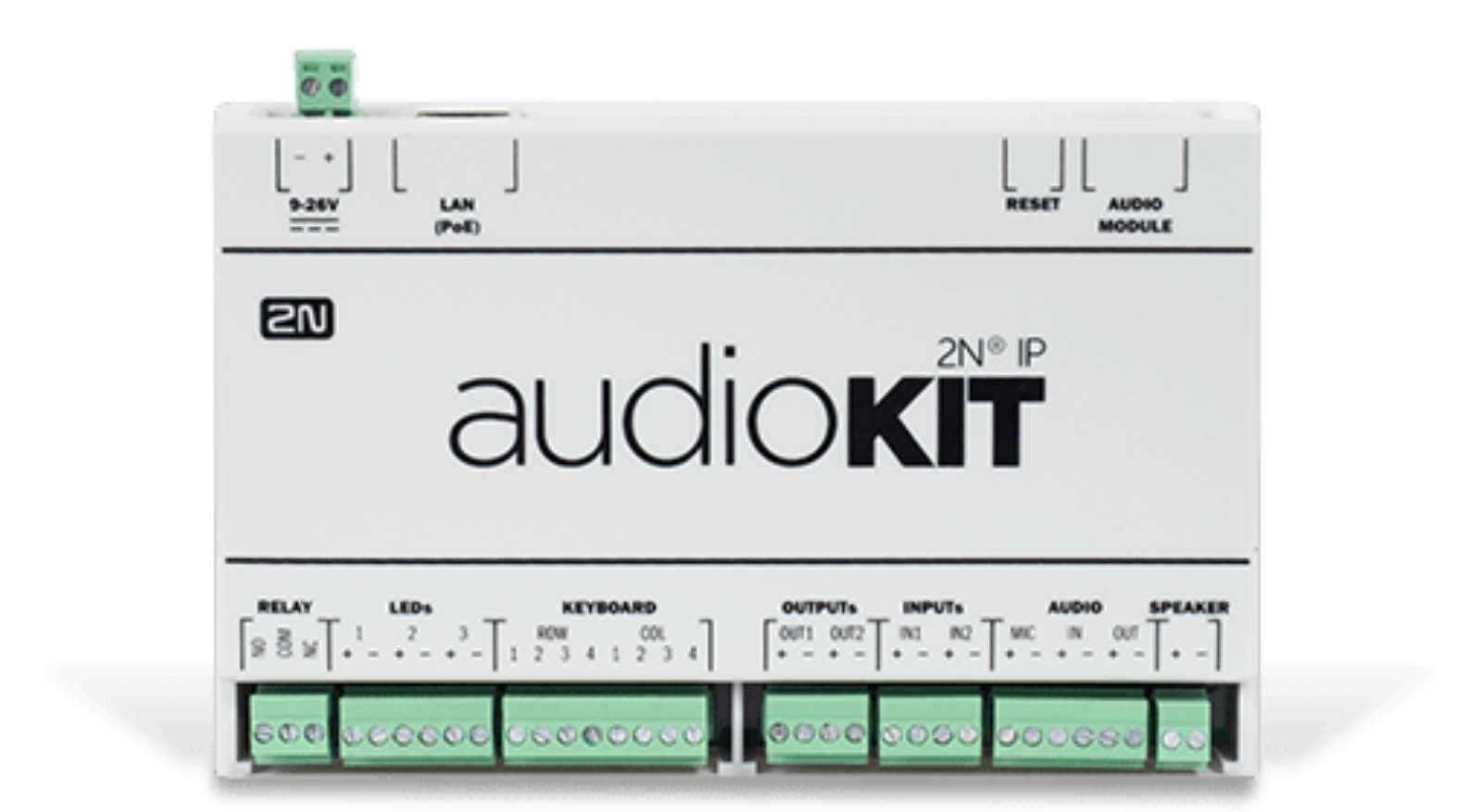

2N IP Audio Kit

2N Article code 9154100

NetcamCenter {{ fullProductName }}

IP Audio Kit is an OEM intercom intended for incorporation into a variety of devices It is designed to add value to both audio communication and remote surveillance and control
In stock
Buy now
+ Quote
  • Adaptive volume
  • User defined sounds
  • SIP support, with no server needed

Description 2N IP Audio Kit

2N IP Audio Kit is an OEM intercom intended for incorporation into a variety of devices. It is designed to add value to both audio communication and remote surveillance and control. With it, users get both live support and the ability to ask for advice at the touch of a button. Choose from a wide range of interfaces. Incorporate The 2N IP Audio Kit, it is easily incorporated into your existing device. Thanks to IP technology you simply extend it to include audio functionality. Hook up a
microphone, speakers, headphones or keypad buttons. The 2N IP Audio Kit is suitable for mounting on a standard TS 35 DIN rail, preferably at least 14 cm long.

Key Features:

  • The 2N IP Audio Kit is easily incorporated into your existing in your device. Thanks to IP technology you simply extend it to include audio functionality
  • There are up to 10 user slots for uploading user-defined sounds (e.g. vocal guidance or warning messages)
  • The HTTP API allows OEM intercom systems to be easily integrated into the master system for remote administration
  • With it’s SIP protocol support the intercom easily links with IP phones and PBX from other producers, without having to connect to the server
  • The 2N IP Audio Kit automatically adjusts speaker volume based on ambient noise level

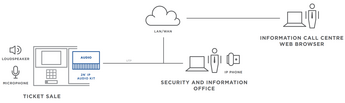

2 N IP Audio Kit Diagram

Downloads

Datasheet Download pdf
Installation manual Download pdf

Compatible products

Switches, PoE & power supply

Specifications

Product
Model number 9154100
GTIN code 8595159502052
Brand 2N
Category
Other Products
Audio & I/O
HS Code
851762
Country of origin
Czechia
Weight
400 grams
Audio/IO
other audio I/O
