AXIS XP40-Q1942 Eac 8.3FPS 19MM -40C

AXIS Article code 01102-001
END-OF-LIFE

NetcamCenter {{ fullProductName }}

End-of-life: Product might no longer be available

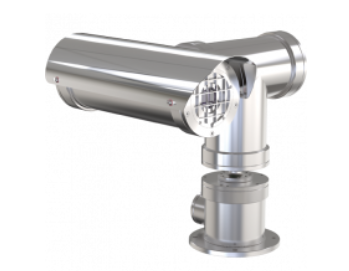

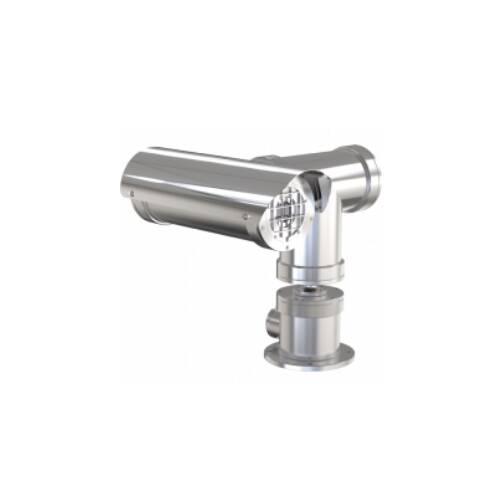

Axis XP40-Q1942 EAC 8.3FPS 19MM -40C Explosion-Protected Thermal Network Camera

Would you like personal advice on alternatives?

Discontinued
+ Quote

Description AXIS XP40-Q1942 Eac 8.3FPS 19MM -40C

This product is put together on request and therefore has a longer delivery time. For more information, please contact us.

Explosion-proof 316L stainless steel PT network camera, certified for hazardous areas according to EAC. Certification part code 1410-10-TI-50 / 2420-01. Oxalis explosion-proof housing with one M20 cable entry and Axis Thermal Network Camera inside with a resolution of 640x480 and an angle of view of 32 °. Continuous 360 ° pan, ± 90 ° tilt and 64 preset positions. At least 3 individual streams in H.264 and Motion JPEG, simultaneous individually configured streams in maximum resolution at 8.3 fps. Video motion detection and shock detection. IP66 and IP67 rated and operating temperature in -40 ° C to + 70 ° C (-40 ° F to + 158 ° F). Powered by 24 V AC (power supply not included). Includes a removable lens hood and AXIS Surveillance microSDXC card 64 GB.

XP40-Q1942 provides excellent detection capabilities and quick and easy visual verification of the nature of detected events to improve security in restricted areas. A combination of 360 ° pan and 90 ° tilt capabilities and VGA 640x480 thermal resolution means a single camera can capture events taking place over a wide area and over a long distance. In addition, thanks to a combination of dynamic histogram smoothing, enhanced local contrast and dynamic sharpening, the XP40-Q1942 improves image contrast for crisp, detailed video in all conditions. Typical applications are detection of people in restricted areas and safety of personnel in hazardous areas. Electronic image stabilization keeps the image smooth even when the camera is exposed to vibration. And the impact detection functionality is also included.

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf
Product Discontinuation Statement Download pdf

Specifications

Product
Model number 01102-001
Brand AXIS
Category
IP Cameras
Positioning
Thermal
Explosion proof
Camera Properties
Outdoor
Basic Functionality
Day and night
Local Storage
Resolution
≤ 720p (1MP)
Axis Series
Q19
Angle of View
31° - 60°
Encoding
H264
