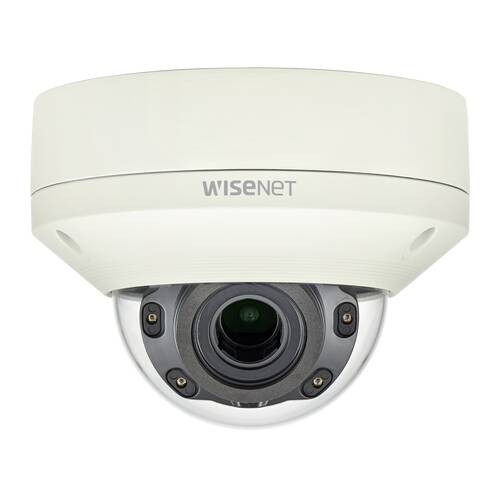

Hanwha XNV-L6080R

Hanwha Article code XNV-L6080R
END-OF-LIFE

NetcamCenter {{ fullProductName }}

End-of-life: Product might no longer be available

Outdoor 2MP IR Vandal Resistant Dome Camera, 3.2~10mm, Varifocal lens 109° - 57.4°, 60fps, Day / Night, Extreme 120dB WDR, PoE

Would you like personal advice on alternatives?

Product variants
Discontinued
+ Quote

Description Hanwha XNV-L6080R

Wisenet X powered by Wisenet 5 network outdoor vandal dome camera, 2MP, Full HD(1080p) @60fps, motorized vari-focal lens 3.1x (3.2~10mm) (109°~33.2°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, high powered IR LEDs range of 98.43', true D/N, single SD card, hallway view, HLC, defog detection, DIS, PoE, IP66, IK10, -40°C ~ +55°C (-40°F ~ +131°F)

Key Features:

  • Max. 2megapixel (1920 x 1080) resolution
  • 3.2 ~ 10mm (3.1x) motorized varifocal lens
  • Max. 60fps@all resolutions (H.265 / H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Day & Night (ICR), WDR (120dB), Defog
  • Tampering, Defocus detection
  • Motion Detection, Handover
  • SD/SDHC/SDXC memory slot (Max. 256GB)
  • Hallway view, WiseStreamII support
  • IR viewable length 30m
  • IP66, IK10, PoE support

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf

Specifications

Product
Model number XNV-L6080R
GTIN code 8801089142993
Brand Hanwha
Category
IP Cameras
Dome
HS Code
852589
Country of origin
Vietnam
Weight
1298 grams
Size (lxwxh)
515 x 425 x 195 millimeters
Camera Properties
Indoor
Built-in infrared
Vandal resistant
Basic Functionality
Day and night
Local Storage
Resolution
1080p (2MP)
Software
Analytics
Hanwha Series
Wisenet X
Angle of View
101° - 130°
