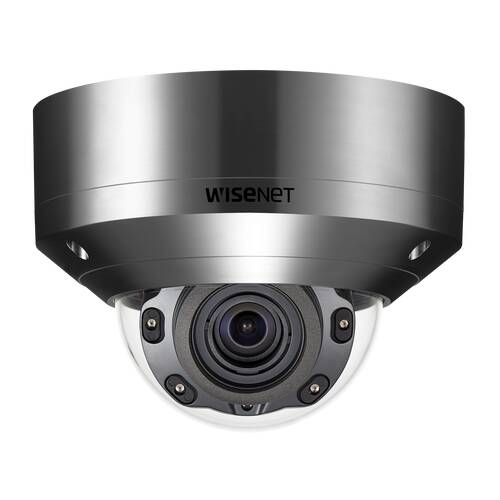

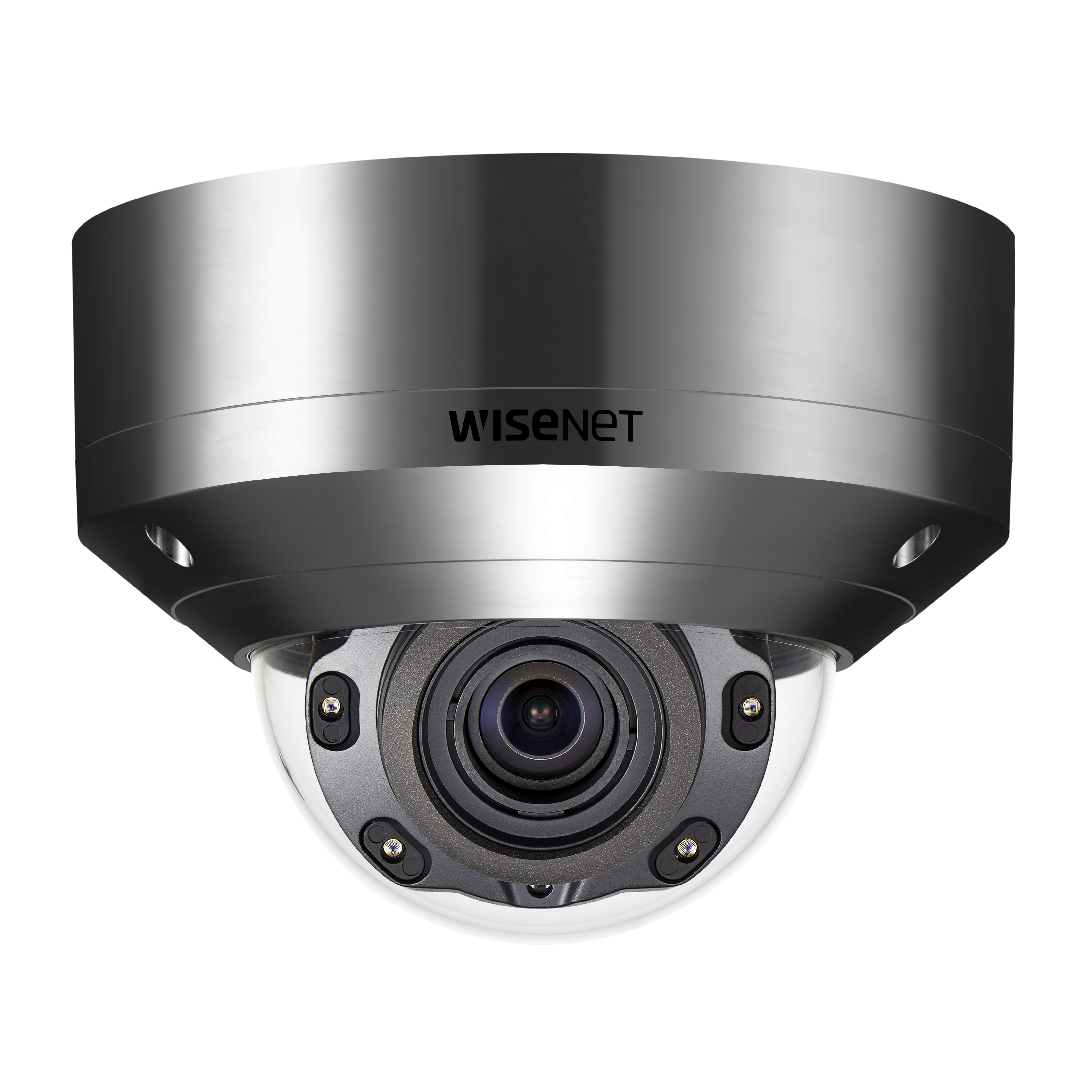

Hanwha XNV-8080RSA
Hanwha
Article code XNV-8080RSA
{{ fullProductName }}
End-of-life: Product might no longer be available
5MP Stainless Steel Vandal Dome, 3.9~ 9.4mm, Vari-focal Lens 92° - 39°, 60fps, Day&Night, 120db WDR, H.265
Would you like personal advice on alternatives?
Description Hanwha XNV-8080RSA
Wisenet X powered by Wisenet 5 network IR outdoor stainless steel vandal dome camera, 5MP @60fps, 3.9 ~ 9.4mm motorized vari-focal lens (2.4x) (92.1°~38.7°), triple codec H.265/H.264/MJPEG with WiseStream II, Multiple streaming, 120dB WDR, True Day & Night (ICR), High Powered IR LEDs with IR viewable length 50m, Advanced Video Analytics and Sound Classification, Hallway View, Motion detection, Fog detection, HLC, Handover, Digital Image Stabilization, Bi-directional audio and dual microSD/SDHC/SDXC slot, USB port for easy installation, IP66, IP6K9K, IK10+, Nema 4X, PoE/12VDC/24VAC.
Key Features:
- Max. 5 Megapixel (2560×1920) resolution
- 3.9 ~ 9.4mm (2.4x) motorised varifocal lens
- Max. 60fps@all resolutions (H.265 / H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Loitering, Directional detection, Tampering, Audio detection, Digital auto tracking, Fog detection, Sound classification
- Motion detection, Handover
- SD/SDHC/SDXC memory 2slots (Max. 512GB)
- Hallway view, WiseStream II support
- IR viewable length 50m
- IP66, IP6K9K, IK10+, NEMA4X
- LDC, PoE support
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Product dimensions | Download |

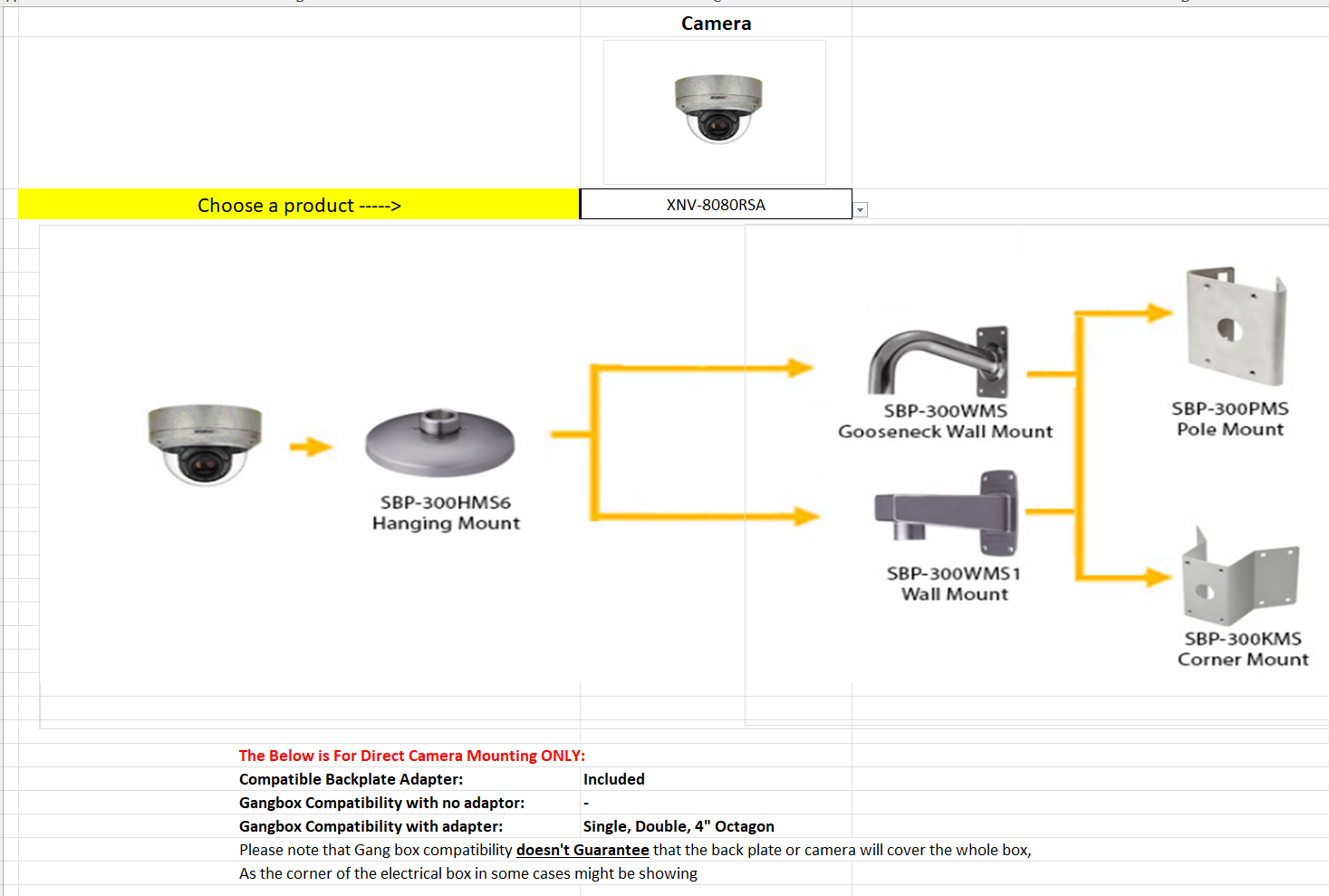

| Mounting accessories | Download |
Specifications
Product
| Model number | XNV-8080RSA |
| GTIN code | 8801089172754 |
| Brand | Hanwha |
| Category |
IP Cameras
Dome
|
| HS Code |
852589
|
| Country of origin |
South Korea
|
| Weight |
2800 grams
|
| Size (lxwxh) |
240
x 240 x 292 millimeters
|
|
Camera Properties
|
Outdoor
Built-in infrared
Stainless steel
Vandal resistant
|
|
Basic Functionality
|
Day and night
Audio support
Local Storage
|
|
Resolution
|
5MP - 7MP
|
|
Hanwha Series
|
Wisenet X
|
|
Optical zoom
|
1-10x
|
|
Encoding
|
H265
|
| Date published | 3/24/2022 |
| EOL since | 10/31/2026 |
| Predecessor | Hanwha XNV-8080RS |
