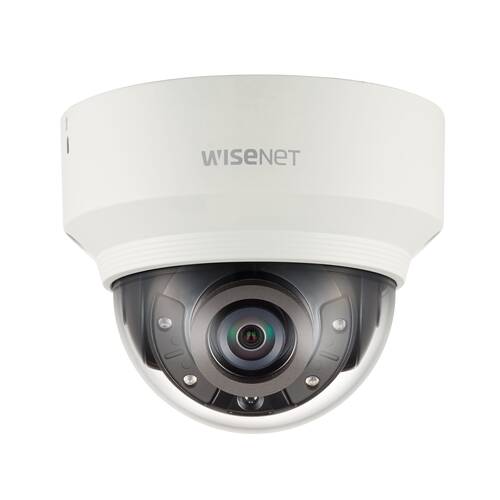

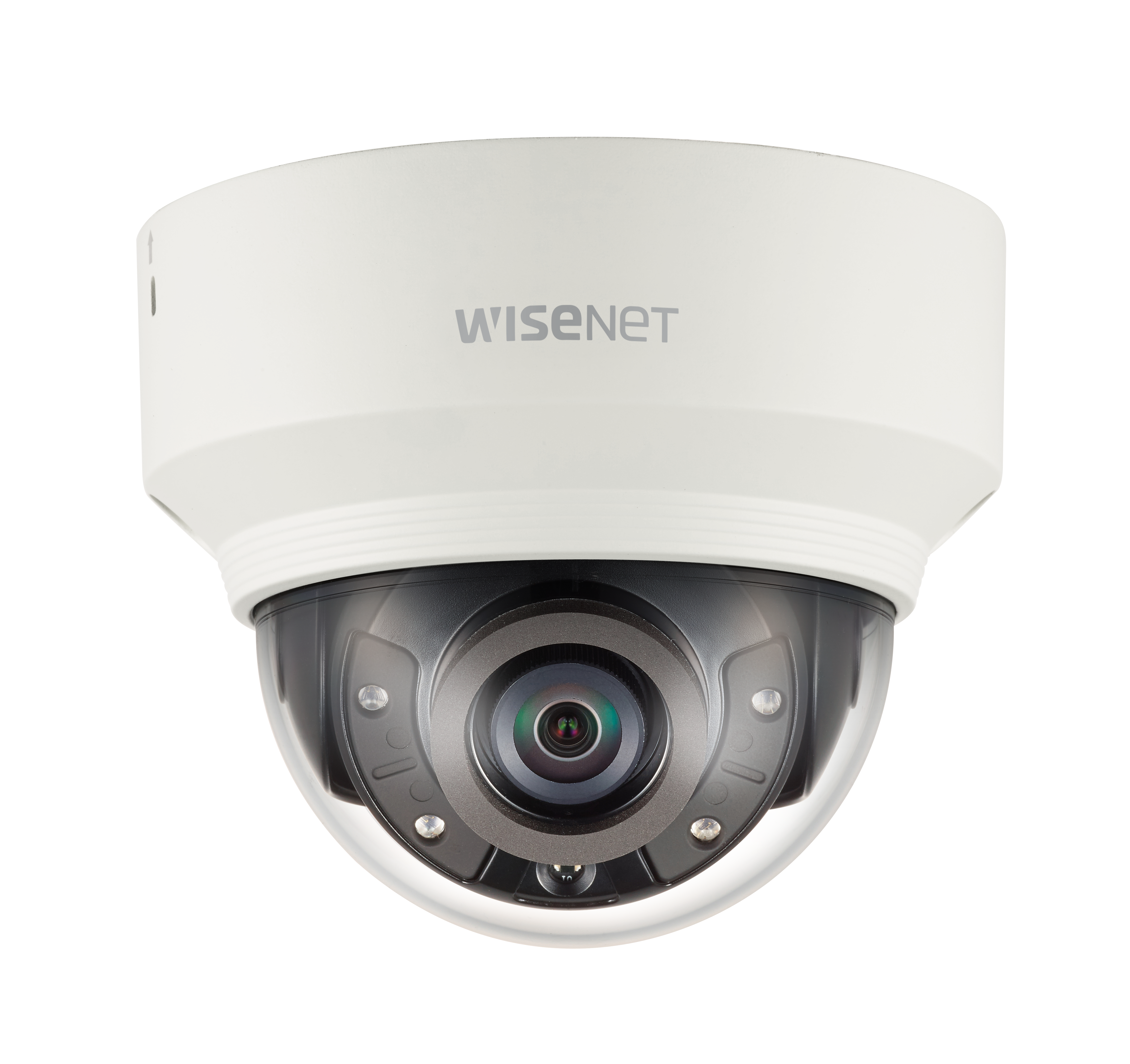

Hanwha XND-8040R
Hanwha
Article code XND-8040R
{{ fullProductName }}
5MP IR Dome Camera, 30fps, Day / Night, 120dB WDR, Built-in 7.0mm lens
- 5MP IR Dome Camera
- Light sensitivity colour: 0.16 Lux
- Suitable for People Counting, Queue Management and Heatmap
Description Hanwha XND-8040R
WiseNet X powered by WiseNet 5 network IR indoor dome camera, 5MP @30fps WDR off/on, 7mm fixed focal lens (50.7°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification, High powered IR LEDs range of 98', True D/N, dual SD card, hallway view, HLC, defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IK08 rated
Key Features:
- Max. 5Megapixel (2560 x 1920) resolution
- Built-in 7.0mm fixed lens
- Max. 30fps@all resolutions (H.265 / H.264)
- H.265, H.264, MJPEG codec Supported, Multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Loitering, Directional detection, Fog Detection, Audio detection,
- Digital Auto Tracking, Sound classification, Heatmap,
- People Counting, Queue Management, Tampering
- Motion detection, Handover
- SD / SDHC / SDXC memory slot (Max. 512GB), PoE / 12V DC
- Hallway View, WiseStreamII Support
- IR Viewable length 30m, IK08
- LDC Support (Lens Distortion Correction)
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Mounting tools | Download |
Video
Specifications
Product
| Model number | XND-8040R |
| GTIN code | 8801089142399 |
| Brand | Hanwha |
| Category |
IP Cameras
Dome
|
| HS Code |
852589
|
| Country of origin |
Vietnam
|
| Weight |
380 grams
|
| Size (lxwxh) |
300
x 588 x 138 millimeters
|
|
Camera Properties
|
Indoor
Built-in infrared
|
|
Basic Functionality
|
Day and night
Local Storage
|
|
Resolution
|
5MP - 7MP
|
|
Software
|
Analytics
|
|
Hanwha Series
|
Wisenet X
|
|
Angle of View
|
31° - 60°
|
