AXIS XF40-Q1765 Eac

This product is put together on request and therefore has a longer delivery time. For more information, please contact us.

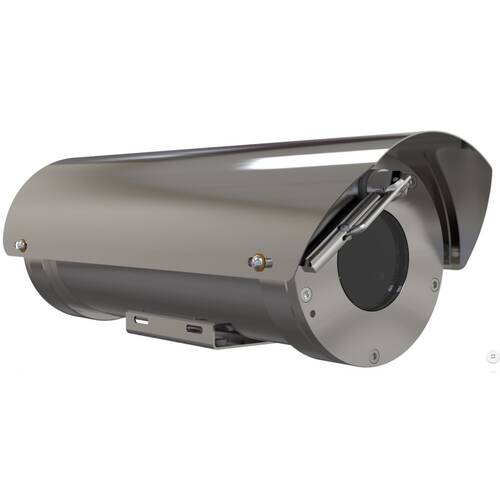

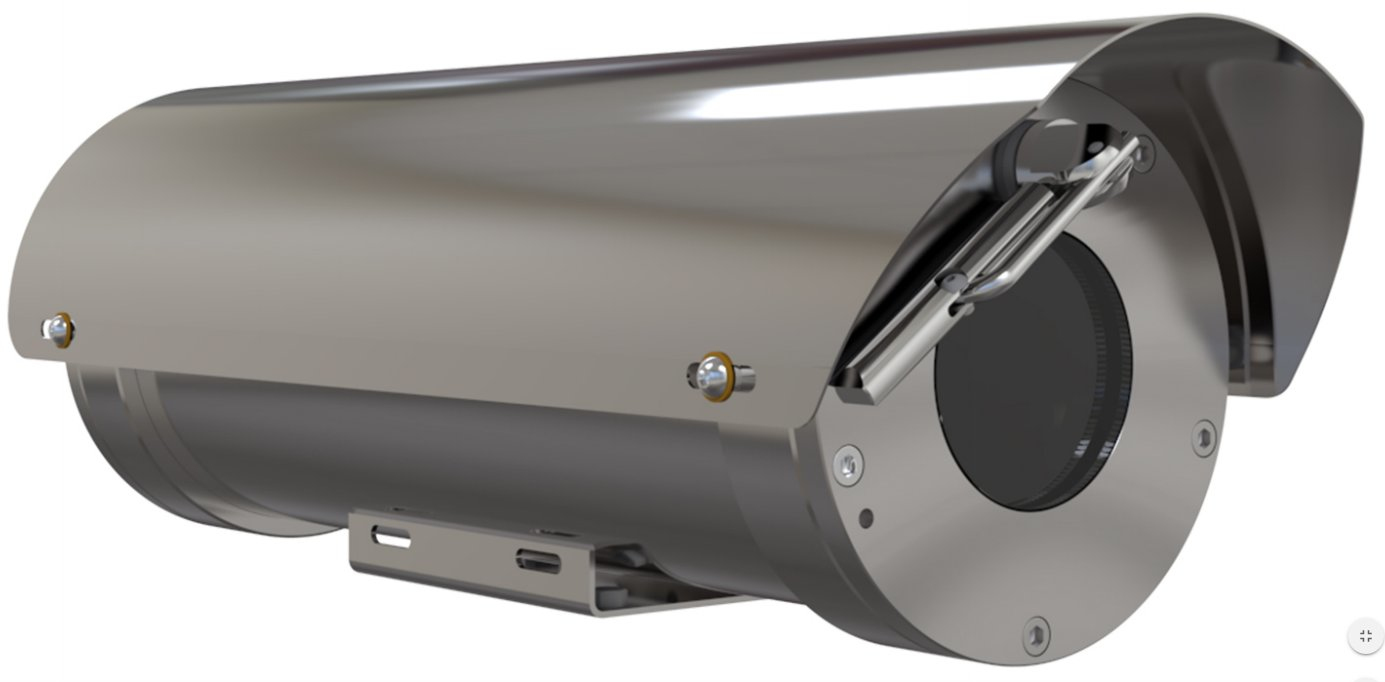

XF40-Q1765 Explosion-Protected Network Camera

Many variants for worldwide coverage

XF40-Q1765 Explosion-Protected Network Camera comprises different variants, certified for hazardous areas according to different regulations valid in different countries. Depending on the variants, the camera features may differ. For instance the UL certified model, XF40-Q1765 -50 C UL, offers three 3/4" NPT conduit entries, while XF40-Q1765 and XF40-Q1765 -60 C models offer three M20 conduit entries. All versions of XF40-Q1765 have a 24 V AC power input. For more information, check the product specific datasheet.

Combining technologies

XF40-Q1765 Explosion-Protected Network Camera is an AXIS Q1765-LE Camera (excl. IR LEDs and SD card, incl. wiper and support for washer) mounted inside an explosion-protected stainless steel housing. The camera provides superb image quality and color fidelity, and offers full HDTV 1080p resolution at 25/30 fps. With 18x optical zoom and autofocus, the camera is ideally suited for remote monitoring situations common in hazardous areas. The camera features an electropolished 316L stainless steel housing certified for hazardous areas according to, among others, ATEX, IECEx and UL.

Critical infrastructure

XF40-Q1765 is ideally suited for video surveillance monitoring in hazardous areas in critical infrastructure such as onshore, offshore and marine environments in the oil and gas industry. In addition, typical application areas are also dusty environments in other industries, for example, paper and textile industries, and grain handling.

Wide temperature range

The outdoor-ready XF40-Q1765 comes in two product versions, depending on the required operating temperature range: either up to 60 ºC (140 ºF) or down to -60 ºC (-76 ºF). A removable sunshield is supplied with the camera.

Flexible integration and remote accessibility

XF40-Q1765 provides a high level of flexible integration possibilities with other equipment, such as access control, illumination and audio. It offers remote accessibility, using any existing IP-based networks. XF40-Q1765 for hazardous areas is a complement to Axis’ wide range of network cameras that can be used in safe areas.
