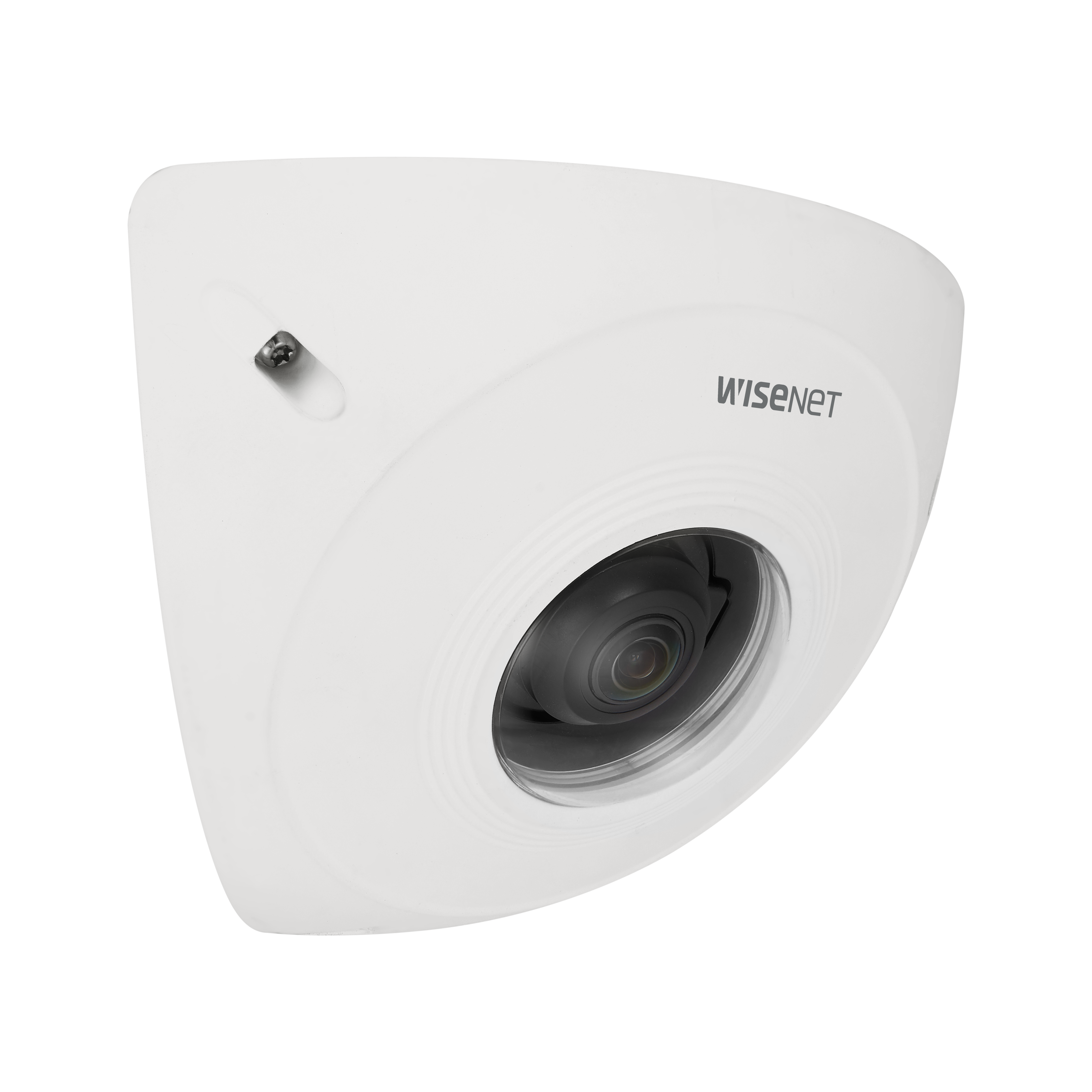

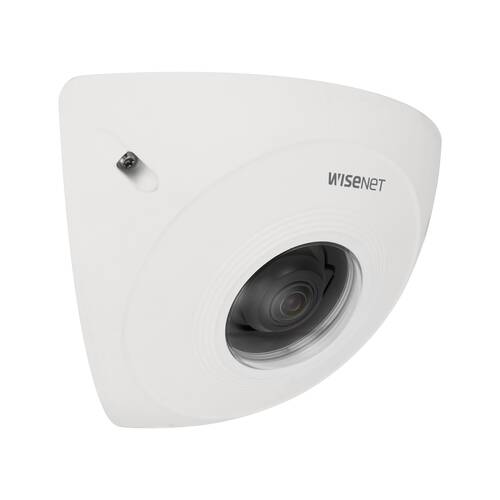

Hanwha TNV-8011C

Hanwha Article code TNV-8011C

NetcamCenter {{ fullProductName }}

5MP anti-ligature Cornor Mount Camera, 2.3mm, 30fps, Day&Night, 120dB WDR, H.265
In stock
Buy now
+ Quote
  • 5MP anti-ligature Cornor Mount Camera
  • 2.3mm fixed lens
  • Light Sensitivity Colour: 0.1 lux, B/W: 0.02 lux (F2.3, 1/30sec)

Description Hanwha TNV-8011C

Wisenet T network outdoor anti-ligature corner mount camera, 5MP @30fps, 2.3mm fixed lens, triple codec H.265/H.264/MJPEG with WiseStream II, Multiple streaming, 120dB WDR, Auto Day & Night (ICR), Advanced Video Analytics, Hallway View, Motion detection, Lens Distortion Correction, Digital Image Stabilization, Audio In/Out, 1 Input/1 Output, SD Card slot, PoE, IP66, IK10, IP6K9K.

Key Benefits:

  • A compact and aesthetically attractive design that fits neatly into a corner of a room or lift offering a more attractive option to installing a dome camera in the same location.
  • Built to make it impossible for a ligature to be tied around it, as well as very difficult for someone to rip it off a wall.
  • Ideal for police, prison and mental health institutions in preventing inmates and patients from self-harming within secure room environments.
  • Features Hallway View which enables users to more effectively monitor tall and narrow spaces, such as corridors.
  • As a true day/night camera which is able to capture clear, sharp colour images and accurately produces images in scenes that contain both very bright and very dark areas.
  • Wide range of Intelligent Video Analytics features, helping users detect different types of incidents.
  • Installation aids such as Wi-Fi dongle (optional) and CVBS video output.

Key Feautures:

  • Maximum 5MP resolution
  • Maximum 30fps @ all resolutions (H.265/H.264/MJPEG)
  • Colour: 0.1 lux (F2.3, 1/30sec) B/W: 0.02 lux (F2.3, 1/30sec)
  • 2.3mm fixed focal
  • Alarm I/O and Audio support
  • H.265, H.264, MJPEG codec support, Multiple streaming
  • Day & Night Auto(ICR), WDR (120dB)
  • Defocus detection, Directional detection, Tampering, Virtual line, Audio detection
  • Micro SD/SDHC/SDXC memory slot (128GB)
  • Hallway view(90°/270°), WiseStream II support
  • PoE, IP66, IP6K9K, IK10

Downloads

Datasheet Download pdf
User manual Download pdf
Product dimensions Download pdf

Specifications

Product
Model number TNV-8011C
GTIN code 8801089210524
Brand Hanwha
Category
IP Cameras
Dome
HS Code
852589
Country of origin
Vietnam
Weight
830 grams
Size (lxwxh)
184 x 234 x 157 millimeters
Camera Properties
Outdoor
Built-in infrared
Basic Functionality
Day and night
Audio support
Local Storage
Resolution
5MP - 7MP
Hanwha Series
Wisenet T
Encoding
H265
