Hanwha TNV-7011RC

Hanwha Article code TNV-7011RC
END-OF-LIFE

NetcamCenter {{ fullProductName }}

End-of-life: Product might no longer be available

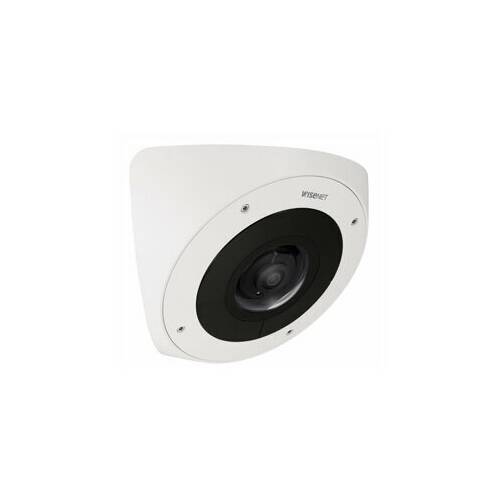

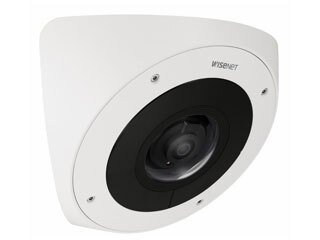

Vandal resistant IP camera for corner mounting, 3 MP (/25 fps), 2.8 mm lens (hor. 102°), invisible IR light up to 10 meters (940 nm), bidir. audio with analytics, PoE/12 VDC.

Successor

Would you like personal advice on alternatives?

Discontinued
+ Quote

Description Hanwha TNV-7011RC

1/2.8 inch CMOS sensor with light sensitivity 0.3 lux in color and 0 lux in b/w (IR on), compression: H.264/265 and MJPEG, mechanical day/night TDN with WDR 120 dB, shock detection and video and audio analysis: tampering, loitering, directional and defocus detection, crossing a virtual line, in/out zone, audio detection with sound classification and built-in microphone, digital AutoTracking, slot for optional microSD(HC/XC) card up to max 256 GB, hallway view, WiseStreamII support, analog video output for installation, digital image stabilization, 8 polygon motion detection zones, 32 privacy zones, LDC (lens distortion correction), alarm I/O: 1/1, waterproof and anti-vandal: IP66 , IP6K9K and IK10+, 12 VDC and PoE (IEEE802.3af)/max. 12 W, colour: white (RAL9003).

Key features:

• Maximum 3MP (2048 x 1536) resolution

• Maximum 30fps @ all resolutions (H.265/H.264/MJPEG)

• 0.3 lux @ F2.0 (Color), 0 lux @ F2.0 (B/W)

• Built-in 2.8mm fixed lens

• Anti-ligature design for corrections and behavioral health facilities

• Day & Night, WDR (120dB)

• Video & audio analytics, Shock detection

• microSD/SDHC/SDXC memory slot (256GB)

• Hallway view, WiseStream II support

• PoE, DC 12V, IK10+

Downloads

Datasheet Download pdf

Specifications

Product
Model number TNV-7011RC
GTIN code 8801089210517
Brand Hanwha
Category
IP Cameras
Dome
HS Code
852589
Country of origin
Vietnam
Weight
2100 grams
Size (lxwxh)
320 x 320 x 185 millimeters
Camera Properties
Outdoor
Basic Functionality
Local Storage
Resolution
1080p (2MP)
Hanwha Series
Wisenet T
Encoding
H265
Audio/IO
